NIC AUTOTEC

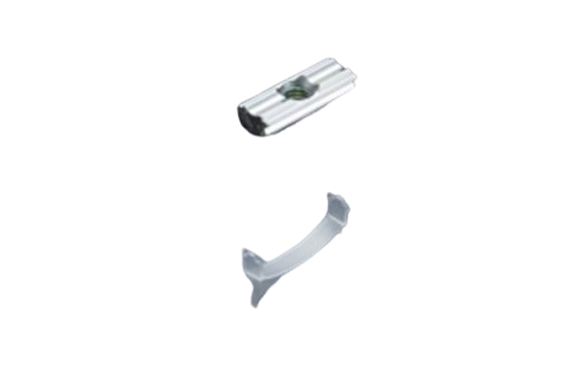

NIC Autotec NAST-06 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: NAST-06 Series
Specification
| Material | size | specification | mass | Set contents | |
|---|---|---|---|---|---|
| NAST-06-3 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M3 bolts | 8.5g | NAMT-06-3 NHA-06 |
| NAST-06-3-P50 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M3 bolts | 425g (8.5 × 50) | NAMT-06-3 NHA-06 |
| NAST-06-4 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M4 bolts | 8.3g | NAMT-06-4 NHA-06 |
| NAST-06-4-P50 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M4 bolts | 415g (8.3 × 50) | NAMT-06-4 NHA-06 |
| NAST-06-5 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M5 bolts | 8.0g | NAMT-06-5 NHA-06 |
| NAST-06-5-P50 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M5 bolts | 400g (8.0 × 50) | NAMT-06-5 NHA-06 |
| NAST-06 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M6 bolts | 7.6g | NAMT-06 NHA-06 |
| NAST-06-P50 | Post-installation nut: Equivalent to SWCH Post-installation nut holder: Polypropylene [PP] | M6 frame | For M6 bolts | 380g (7.6 × 50) | NAMT-06 NHA-06 |

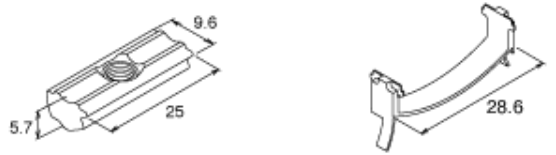

Dimension
