NIC AUTOTEC

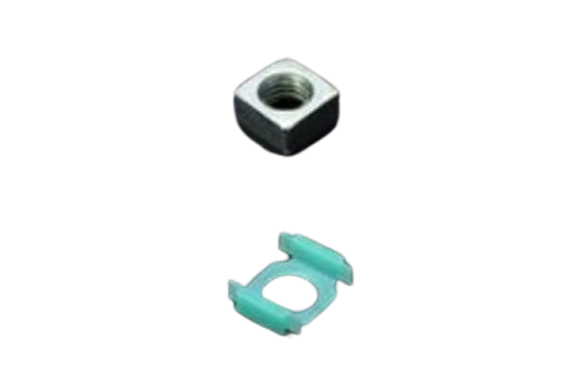

NIC Autotec NHG/NHR-06 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: NHG/NHR-06 Series
Specification
| Adaptable frame | Screw size | Mass | Set contents | |
|---|---|---|---|---|
| NHG-06-3 | M6 frame | M3 | 3.3g/set | NSM-06-3 NH-06-GR |
| NHG-06-3-P50 | M6 frame | M3 | 165g (3.3 × 50) | NSM-06-3 NH-06-GR |
| NHG-06-4 | M6 frame | M4 | 3.2g/set | NSM-06-4 NH-06-GR |
| NHG-06-4-P50 | M6 frame | M4 | 160g (3.2 × 50) | NSM-06-4 NH-06-GR |
| NHG-06-5 | M6 frame | M5 | 3.0g/set | NSM-06-5 NH-06-GR |
| NHG-06-5-P50 | M6 frame | M5 | 150g (3.0 × 50) | NSM-06-5 NH-06-GR |
| NHG-06 | M6 frame | M6 | 2.7g/set | NSM-06-6 NH-06-GR |
| NHG-06-P50 | M6 frame | M6 | 135g (2.7 × 50) | NSM-06-6 NH-06-GR |
| NHR-06-3 | M6 frame | M3 | 3.3g/set | NSM-06-3 NH-06-RE |
| NHR-06-3-P50 | M6 frame | M3 | 165g (3.3 × 50) | NSM-06-3 NH-06-RE |
| NHR-06-4 | M6 frame | M4 | 3.2g/set | NSM-06-4 NH-06-RE |
| NHR-06-4-P50 | M6 frame | M4 | 160g (3.2 × 50) | NSM-06-4 NH-06-RE |
| NHR-06-5 | M6 frame | M5 | 3.0g/set | NSM-06-5 NH-06-RE |
| NHR-06-5-P50 | M6 frame | M5 | 150g (3.0 × 50) | NSM-06-5 NH-06-RE |
| NHR-06 | M6 frame | M6 | 2.7g/set | NSM-06-6 NH-06-RE |
| NHR-06-P50 | M6 frame | M6 | 135g (2.7 × 50) | NSM-06-6 NH-06-RE |

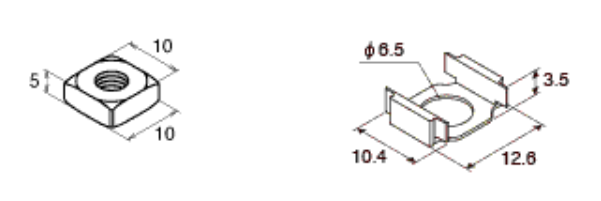

Dimension
