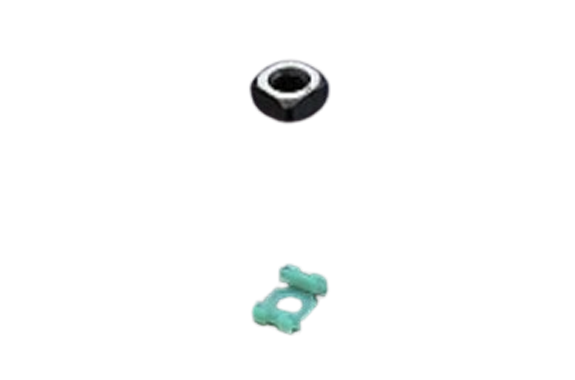

NIC Autotec NHGS/NHRS-06 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: NHGS/NHRS-06 Series
Specification
| Adaptable frame | Screw size | Mass | Set contents | |
|---|---|---|---|---|
| NHGS-06-3 | M6 frame | M3 | 3.1g/set | NSMS-06-3 NH-06-GR |
| NHGS-06-3-P50 | M6 frame | M3 | 155g (3.1 x 50) | NSMS-06-3 NH-06-GR |
| NHGS-06-4 | M6 frame | M4 | 3.1g/set | NSMS-06-4 NH-06-GR |
| NHGS-06-4-P50 | M6 frame | M4 | 155g (3.1 x 50) | NSMS-06-4 NH-06-GR |
| NHGS-06-5 | M6 frame | M5 | 2.8g/set | NSMS-06-5 NH-06-GR |
| NHGS-06-5-P50 | M6 frame | M5 | 140g (2.8 x 50) | NSMS-06-5 NH-06-GR |
| NHGS-06 | M6 frame | M6 | 2.5g/set | NSMS-06-6 NH-06-GR |
| NHGS-06-P50 | M6 frame | M6 | 125g (2.5 x 50) | NSMS-06-6 NH-06-GR |
| NHRS-06-3 | M6 frame | M3 | 3.1g/set | NSMS-06-3 NH-06-RE |
| NHRS-06-3-P50 | M6 frame | M3 | 155g (3.1 x 50) | NSMS-06-3 NH-06-RE |
| NHRS-06-4 | M6 frame | M4 | 3.1g/set | NSMS-06-4 NH-06-RE |
| NHRS-06-4-P50 | M6 frame | M4 | 155g (3.1 x 50) | NSMS-06-4 NH-06-RE |
| NHRS-06-5 | M6 frame | M5 | 2.8g/set | NSMS-06-5 NH-06-RE |
| NHRS-06-5-P50 | M6 frame | M5 | 140g (2.8 x 50) | NSMS-06-5 NH-06-RE |
| NHRS-06 | M6 frame | M6 | 2.5g/set | NSMS-06-6 NH-06-RE |
| NHRS-06-P50 | M6 frame | M6 | 125g (2.5 x 50) | NSMS-06-6 NH-06-RE |

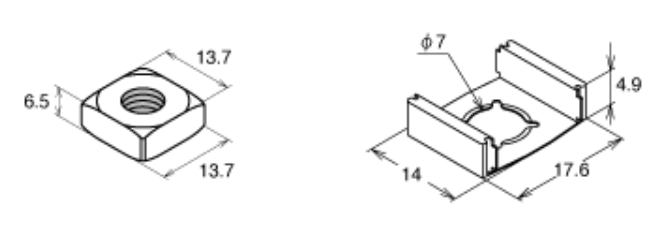

Dimension
