NIC Autotec NHGS/NHRS-08 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: NHGS/NHRS-08 Series
Specification
| Adaptable frame | Screw size | Mass | Set contents | |
|---|---|---|---|---|
| NHGS-08-4 | M8 frame | M4 | 7.9g/set | NSMS-08-4 NH-08-GR |
| NHGS-08-4-P50 | M8 frame | M4 | 395g (7.9 x 50) | NSMS-08-4 NH-08-GR |
| NHGS-08-5 | M8 frame | M5 | 7.8g/set | NSMS-08-5 NH-08-GR |
| NHGS-08-5-P50 | M8 frame | M5 | 390g (7.8 x 50) | NSMS-08-5 NH-08-GR |
| NHGS-08-6 | M8 frame | M6 | 7.5g/set | NSMS-08-6 NH-08-GR |
| NHGS-08-6-P50 | M8 frame | M6 | 375g (7.5 x 50) | NSMS-08-6 NH-08-GR |
| NHGS-08 | M8 frame | M8 | 6.9g/set | NSMS-08-8 NH-08-GR |
| NHGS-08-P50 | M8 frame | M8 | 345g (6.9 x 50) | NSMS-08-8 NH-08-GR |
| NHRS-08-4 | M8 frame | M4 | 7.9g/set | NSMS-08-4 NH-08-RE |
| NHRS-08-4-P50 | M8 frame | M4 | 395g (7.9 x 50) | NSMS-08-4 NH-08-RE |
| NHRS-08-5 | M8 frame | M5 | 7.8g/set | NSMS-08-5 NH-08-RE |
| NHRS-08-5-P50 | M8 frame | M5 | 390g (7.8 x 50) | NSMS-08-5 NH-08-RE |
| NHRS-08-6 | M8 frame | M6 | 7.5g/set | NSMS-08-6 NH-08-RE |
| NHRS-08-6-P50 | M8 frame | M6 | 375g (7.5 x 50) | NSMS-08-6 NH-08-RE |
| NHRS-08 | M8 frame | M8 | 6.9g/set | NSMS-08-8 NH-08-RE |
| NHRS-08-P50 | M8 frame | M8 | 345g (6.9 x 50) | NSMS-08-8 NH-08-RE |

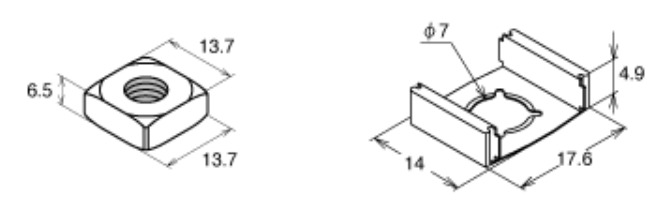

Dimension
