NT TOOL CORPORATION

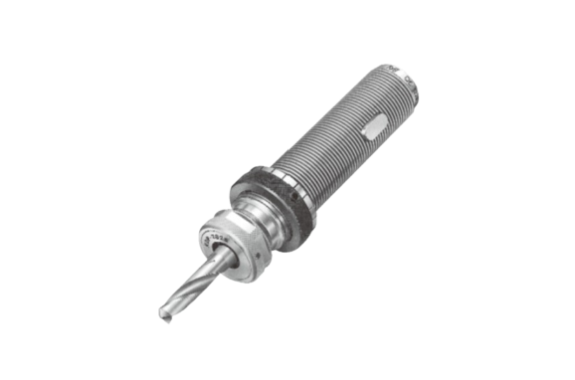

NT Tool Corporation DC Series Straight Drill Chuck
Manufacturer: NT TOOL CORPORATION
Model: DC Series
Feature
- Collet type adapter for straight shank drill.
- Use with drilling chuck with SSMA nut enables quick change.
Specifications

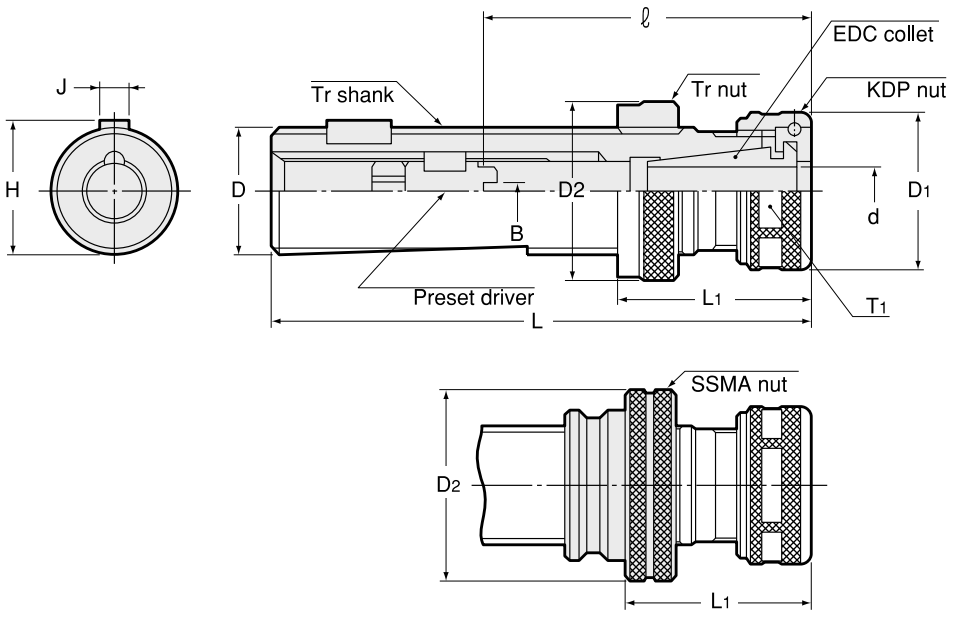

| Model | D h6 | d Chuck Range | B | ℓ | Preset driver | L | D1 | D2 | L1 | H | J | T1 | Nut | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC-1619 /Tr16 | 16 | 2.8～9 | 0 | 18～58 | DCS -009 | 103 | 26 | 25 | 35～50 | 17.1 | 5 | 24 | KDP-1916 | 0.1 |
| DC-1619 /SSMA16 | 16 | 2.8～9 | 4 | 31～71 | DCS -409 | 103 | 26 | 26 | 32～47 | 17.1 | 5 | 24 | KDP-1916 | 0.1 |
| DC-2019 /Tr20 | 20 | 2.8～9 | 0 | 18～58 | DCS -009 | 108 | 26 | 32 | 35～50 | 21.1 | 5 | 24 | KDP-1916 | 0.2 |
| DC-2019 /SSMA20 | 20 | 2.8～9 | 4 | 31～71 | DCS -409 | 108 | 26 | 33 | 32～47 | 21.1 | 5 | 24 | KDP-1916 | 0.2 |
| DC-2524 /Tr25 | 25 | 2.8～12 | 0 | 23～63 | DCS -012 | 118 | 32 | 37 | 38～63 | 26.5 | 6 | 30 | KDP-2422 | 0.3 |
| DC-2524 /SSMA25 | 25 | 2.8～12 | 5 | 33～73 | DCS -512 | 118 | 32 | 40 | 36～61 | 26.5 | 6 | 30 | KDP-2422 | 0.4 |
