NT Tool Corporation ED･A Series Straight Drill Chuck
Manufacturer: NT TOOL CORPORATION
Model: ED･A Series
Feature
- Collet type adapter for straight shank drill.
Specifications

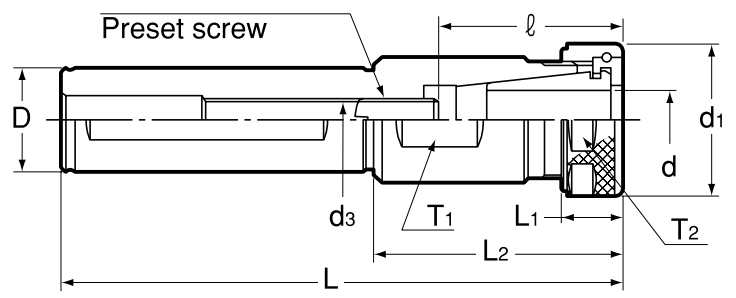

| Model | Chuck Range | Type | D h6 | L | d1 | L1 | L2 | M | d3 | ℓ | T1 | T2 | Nut | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ED-1619A | 2.8～9 | 1 | 16 | 125 | 26 | 14 | 50 | M8 | 6.8 | 30～40 | 17 | 24 | KDP-1916 | 0.2 |
| ED-2019A | 2.8～9 | 2 | 20 | 125 | 26 | 14 | — | M10 | 9.3 | 30～60 | 17 | 24 | KDP-1916 | 0.2 |
| ED-2219A | 2.8～9 | 3 | 22 | 125 | 26 | 14 | 50 | M10 | 9.3 | 30～60 | 17 | 24 | KDP-1916 | 0.3 |
| ED-2519A | 2.8～9 | 3 | 25 | 125 | 26 | 14 | 50 | M10 | 9.3 | 30～60 | 17 | 24 | KDP-1916 | 0.3 |
| ED-25419A | 2.8～9 | 3 | 25.4 | 125 | 26 | 14 | 50 | M10 | 9.3 | 30～60 | 17 | 24 | KDP-1916 | 0.3 |
