NT TOOL CORPORATION

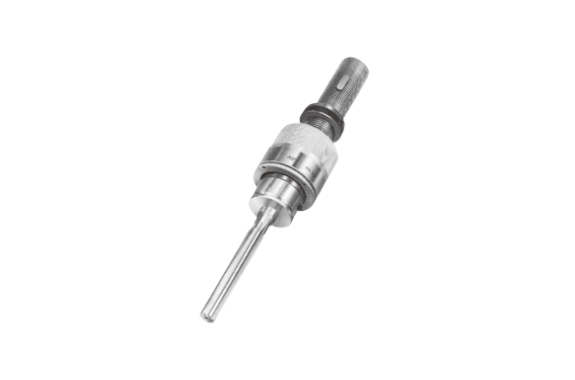

NT Tool Corporation FH-Tr Series Floating Holder
Manufacturer: NT TOOL CORPORATION
Model: FH-Tr Series
Feature
- For high precision reaming with special purpose machines and transfer lines.
Specifications

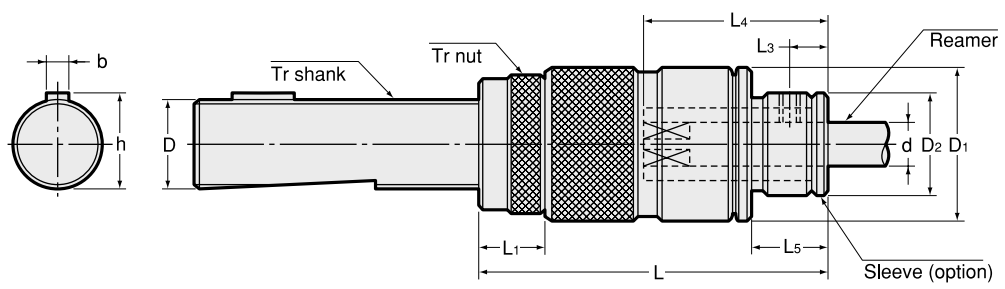

| Model | d Reamer shank | Sleeve size | Float | D | b | h | D1 | L | L1 | L3 | L5 | D2 | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial | Angular | |||||||||||||
| FH0 -Tr16 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 16 | 5 | 17.2 | 28 | 62～80 | 12 | 7 | 15 | 19.5 | 0.3 |
| FHO-Tr16T | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 16 | 3 | 17.3 | 28 | 62～80 | 12 | 7 | 15 | 19.5 | 0.3 |
| FHO-Tr16N | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 16 | 4 | 17.5 | 28 | 62～80 | 12 | 7 | 15 | 19.5 | 0.3 |
| FHO-Tr19 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 19 | 5 | 21.1 | 28 | 62～80 | 12 | 7 | 15 | 19.5 | 0.3 |
| FHO-Tr20 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 20 | 5 | 21.2 | 28 | 62～75 | 12 | 7 | 15 | 19.5 | 0.3 |
