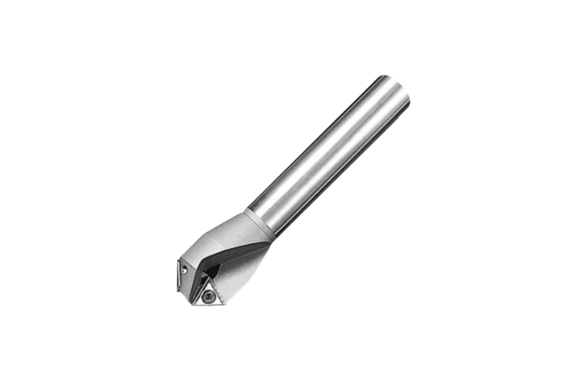

NT Tool Corporation FM Chamfering Cutter
Manufacturer: NT TOOL CORPORATION
Model: FM
Feature
- For chamfering, countersinking and corner rounding with machining center and milling machine.
- Slim body suitable for chamfering in deep hole.
- With special inserts, min. dia 2mm chamfering is possible.
Dimensions
| Model | Type | Chamfering dia（φd） | φ D1 | φ D2 | L1 | L2 | L3 | kg |
|---|---|---|---|---|---|---|---|---|
| FM0209 | 1 | 2～9 | 12 | 12 | 140 | 40 | 100 | 0.12 |
| FM0514 | 1 | 5～14 | 16 | 16 | 160 | 60 | 100 | 0.23 |
| FM1030 | 2 | 10～30 | 20 | 32 | 167 | 47 | 120 | 0.41 |
