NT TOOL CORPORATION

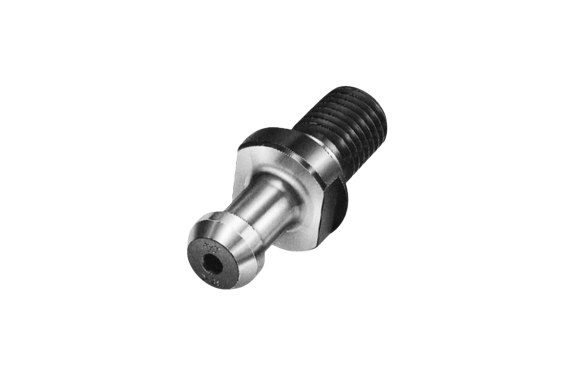

NT Tool Corporation PSB / PSC Series Retention Stud
Manufacturer: NT TOOL CORPORATION
Model: PSB / PSC Series
Feature
- PSB for BT shanks
- PSC for CAT shanks

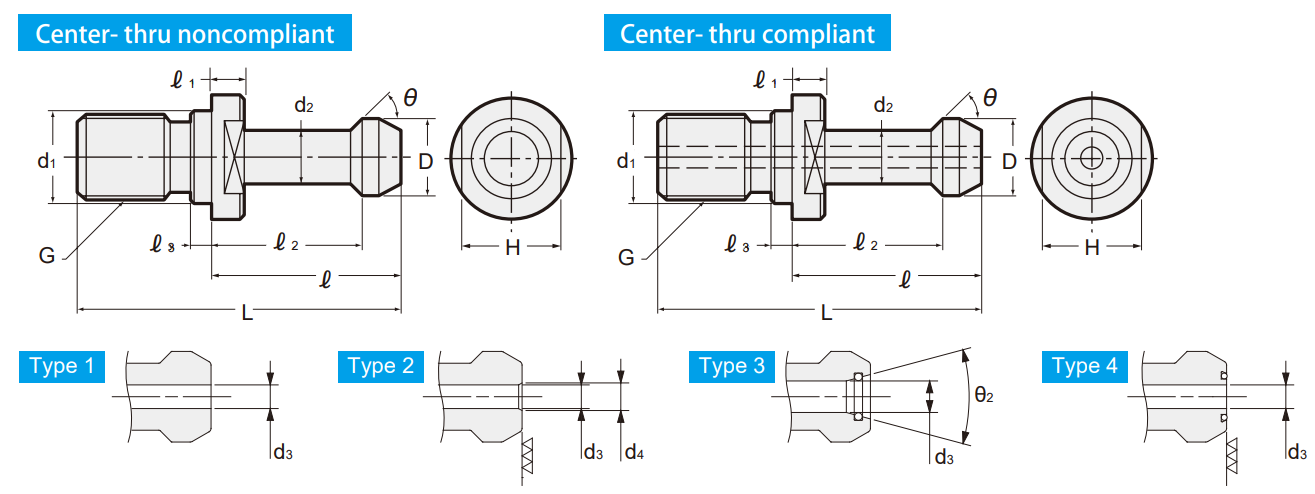

Specifications
| Code | Model | Shank | Standard | Center through | D | d1 | h7 | d2 | L | l1 | l2 | l3 | G | H | θ | Type | θ2 | d3 | d4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0754 00000000 | PSB -0 | BT30 | MAS-1 | — | 11 | 12.5 | 7 | 43 | 23 | 5 | 18 | 4 | M12 | 13 | 45° | — | — | — | — |
| 0754 00000100 | PSB -0A | BT30 | MAS-2 | — | 11 | 12.5 | 7 | 43 | 23 | 5 | 18 | 4 | M12 | 13 | 60° | — | — | — | — |
| 0754 10000000 | PSB -0-CH | BT30 | MAS-1 | — | 11 | 12.5 | 7 | 43 | 23 | 5 | 18 | 5.5 | M12 | 13 | 45° | 1 | 2.5 | — | — |
| 0754 10000100 | PSB -0-CH | BT30 | MAS-2 | — | 11 | 12.5 | 7 | 43 | 23 | 5 | 18 | 5.5 | M12 | 13 | 60° | 1 | 2.5 | — | — |
