Japan, Obishi Keiki

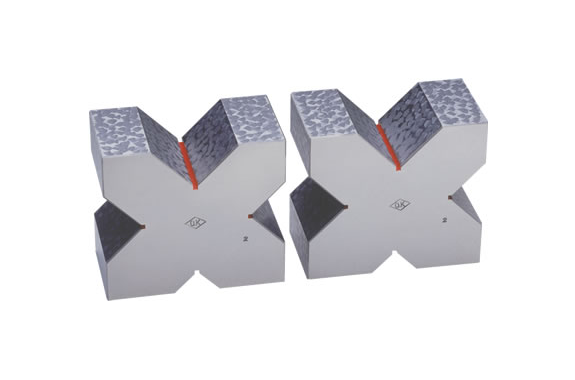

Obishi Keiki X-Type Block Seisakusho Cast Iron
Made in Japan
Manufacturer : Obishi Keiki Seisakusho
Model: X-Type Block
Stock No :319
V Groove is set on each of the 4 surfaces.
V Groove Width is set with various measurements
2 pcs make up 1 set. Base and V Groove of the 2 pcs are Parallel
| Code No. | Nominal Measurement | Measurement (L×H×Wmm) | V Width (S – L mm) | Parallelisms (μm) | Mass (kg/Set) |
|---|---|---|---|---|---|
| JL101 | 110 | 110×100×60 | 25×40×45×50 | 10 | 9 |
| JL102 | 150 | 150×140×85 | 45×65×70×80 | 15 | |
| JL103 | 200 | 200×170×85 | 60×70×90×100 | 15 | 22 |
| JL104 | 250 | 250×200×90 | 70×80×100×120 | 30 |
