Manufacturer: Okaya Seiritsu Engineering Co., Ltd.

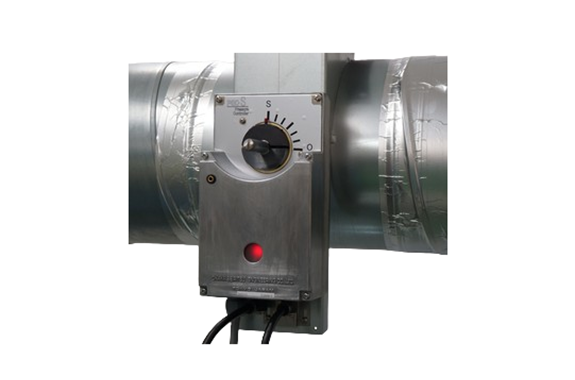

Model: PEC-S

Features

• ＜Miniaturization＞
  The motor and the controller are packed into one case for downsizing.
• ＜Easy installation work＞
  Installation work has become easy by eliminating the conventional linkage mechanism and adopting a motor directly connected to damper.
• ＜Adjustment man-hours can be reduced＞
  Highly responsive and stable controllability requires little adjustment at the installation.
• ＜Easy operation with a dedicated controller＞
  “Handy Terminal” is used to set room pressure.
  An LCD makes it easier to see the settings and current values.
  After the setting, it can be removed to reduce installation space.
•

• Specification

• Pressure range	±100Pa
  Detection accuracy	±2.0%/FS (FS: full scale of pressure range)
  Rated torque	20 N・m or more
  Current room pressure signal output	4-20 mA/FS, load resistance of 300Ω or less
  Power supply	DC24V、AC100～200V
  External dimensions	(Approx.) 126 x 249 x 77
