Sakae Tsushin Kogyo

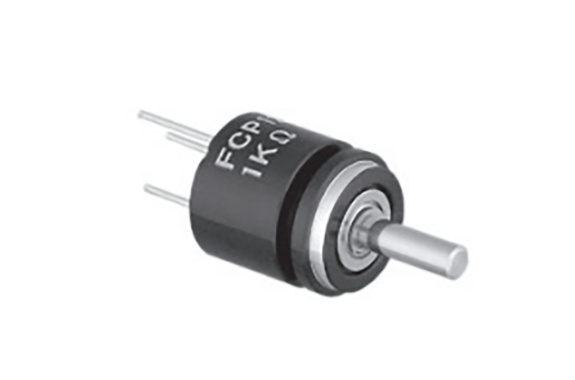

Sakae FCP12A Conductive Plastic
Manufacturer: Sakae Tsushin Kogyo Co., Ltd
Model: FCP12A

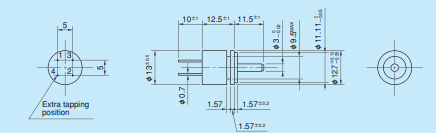

Standard Dimensions
General Specifications
| Item | Specification |
|---|---|
| Standard Resistance Values | 1k, 2k, 5k, 10k (Ω) |
| Special Practical Resistance Values | 500, 20k, 50k, 100k (Ω) |
| Total Resistance Tolerance | Standard Class ±15% (L) Precision Class ±10% (K) |
| Independent Linearity Tolerance | Standard Class ±2.0% Precision Class ±1.0% |
| Resolution | Essentially infinite |
| Output Smoothness | Within 0.1% against input voltage |
| Item | Specification |
|---|---|
| Contact Resistance Variation | Within 3% C.R.V. |
| Power Rating | 0.2W |
| Electrical Travel | 300° ±5° |
| Mechanical Travel | 360° (Endless) |
| Insulation Resistance | Over 1,000MΩ at 500V D.C. |
| Dielectric Strength | 1 minute at 500V A.C. |
| Starting Torque | Within 1mN·m (10gf·cm) |
| Resistance Temperature Coefficient | ±400p.p.m./°C |
| Mass | Approx. 5g |
Special Specifications Available
| Category | Description |
|---|---|
| Extra Tap | Available up to 1 tap |
| Shaft Extension | Front and rear extension (Rear shaft with 1mm dia. and 10mm length) |
| Stopper Option | Rotating angle is 310° and stopper strength is 0.3N·m (3kgf·cm) |
| Electrical Travel | Special electrical travel available |
| Shaft Dimension | Shaft dia. (φ3.175mm) with inch dimension |
| Shaft Machining | Special machining on the shaft |
