Sakae Tsushin Kogyo

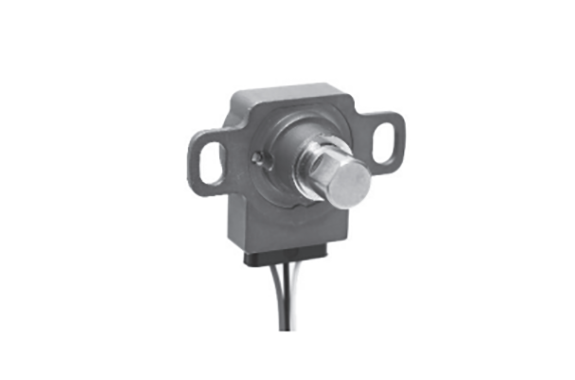

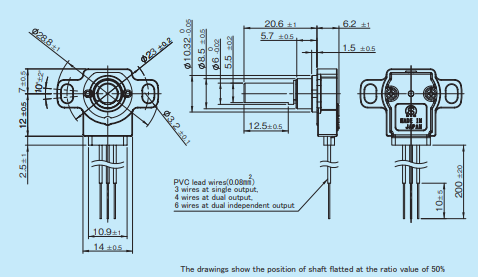

Sakae HSM14 Hall effect IC
Manufacturer: Sakae Tsushin Kogyo Co., Ltd
Model: HSM14
General Specifications
| Item | Specification |
|---|---|
| Current Consumption | Single output: Max. 16mA Dual output: Max. 32mA |
| Independent Linearity Tolerance | ±1%FS (FS = 360°) |
| Mechanical Rotating Angle | 360° (Endless) |
| Electrical Angle | 360° |
| Applied Voltage | 5V ±10% D.C. |
| Load Resistance | 10kΩ min |
| Effective Output | 10%Vin ±3%Vin ~ 90%Vin ±3%Vin |
| Output Temperature Characteristics | Within ±0.3% Vout/FS |
| Operating Temperature Range | −40°C ~ +105°C |
| Storage Temperature Range | −40°C ~ +105°C |
| Mass | Approx. 11g |
| Rotating Torque | Within 5mN·m (within 50gf·cm) |
| Protection Grade (IP) | IP65 |
Environmental Specifications
| Item | Specification |
|---|---|
| Thermal Shock | 5 cycles −40°C ↔ +105°C |
| Exposure at Low Temperature | 24 hours at −40°C |
| Exposure at High Temperature | 1,000 hours at +105°C |
| Vibration | 10 to 2,000Hz, 196m/s², 12 hours |
| Shock | 980m/s², 6ms (18 times) |
| Rotational Life Expectancy | Approx. 100,000,000 shaft revolutions |
| Radiated Electromagnetic Field Immunity | 100V/m (80MHz ~ 6GHz, ISO11452-1~3) |
| ESD Immunity | ±8kV contact discharge ±15kV air discharge (Based on IEC 61000-4-2) |

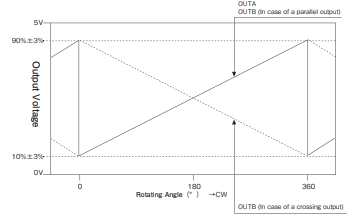

Output Characteristics
Terminal Connection Diagram
Special Specifications Available
| Category | Description |
|---|---|
| Effective Electrical Angle | 90°, 180°, 270°, or arbitrary angles |
| Shaft Machining | Special machining on the shaft |
| PWM Output | Available |
| Output Configuration | Cross output, Parallel output, Dual independent output |
| Low Current Consumption Mode | Within 11mA (slow mode) |
Use Caution
Organic solvents such as acetone or alcohol solutions such as ethanol may leave chemical burn scars on plastic surfaces. For applications requiring chemical resistance (organic solvent resistance, alcohol resistance, etc.), additional precautions should be taken.
