Sakaguchi Electric Heaters CO.

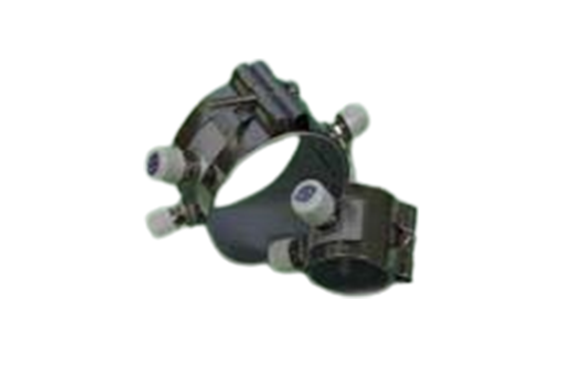

Sakaguchi 2-piece type Band Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: 2-piece type
Features
Specifications

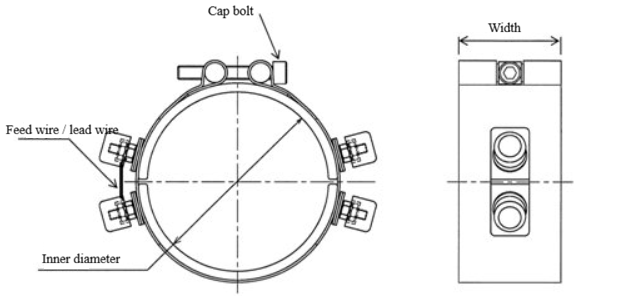

| Model | Inner Diameter (mm) | Width (mm) | Power Terminals | Voltage (V) | Capacity (W) | Watt Density (W/cm2) | Product Code |
|---|---|---|---|---|---|---|---|
| 2 Pieces | 60 | 50 | M5 | 100 | 150×2 | 3.7 | BH6050N |
| 80 | 50 | M5 | 100 | 200×2 | 3.5 | BH8050N | |
| 100 | 50 | M5 | 100 | 250×2 | 3.4 | BH10050N | |
| 120 | 50 | M5 | 100 | 300×2 | 3.4 | BH12050N | |
| 150 | 50 | M5 | 100 | 400×2 | 3.6 | BH15050N |
