Sakaguchi Electric Heaters CO.

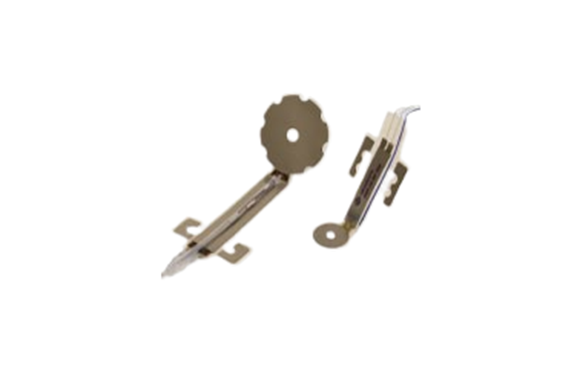

Sakaguchi 500ml beaker type Emiflon Chemical Liquid Heater

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: 500ml beaker type
Features
Specifications

| Model number | EMI500P |
|---|---|
| Service temperature | Regular liquid temperature of 80°C (this is only a guideline and the temperature at which it can be used will vary depending on the actual usage environment) |
| Minimum Liquid Volume | 400ml |

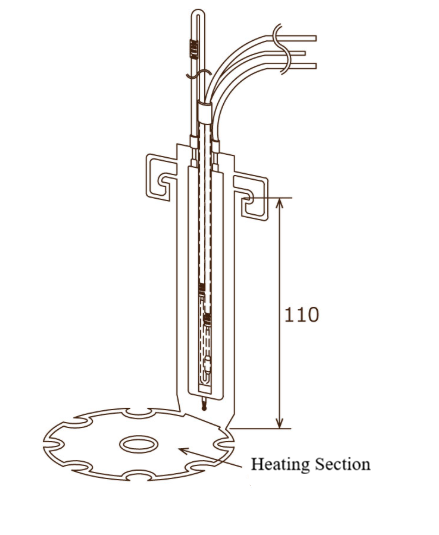

| Thickness of the heating part | 0.7mm |
| Heating part diameter | 81mm |
| Freeze frame | 100V 220W |
| Power Density | 4W/cm² |
| Lead Length | 1000mm |
| Thermocouple | K-type |
| Thermal Fuse | Yes |
