Sakaguchi Electric Heaters CO.

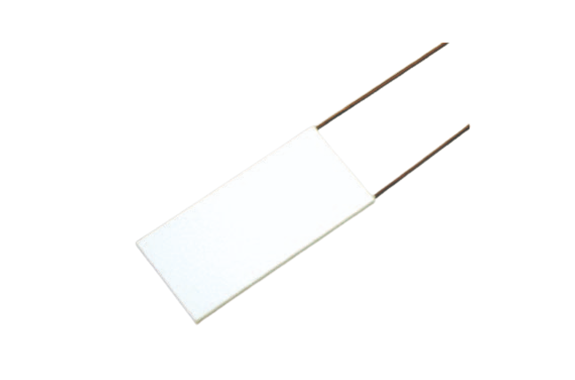

Sakaguchi MC2550 500°C [25mm×50mm] Microceramic Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: MC2550
Features
Specifications
| Product Code | MC2550 | Capacity (at room temperature) | 100W±25% |
|---|---|---|---|

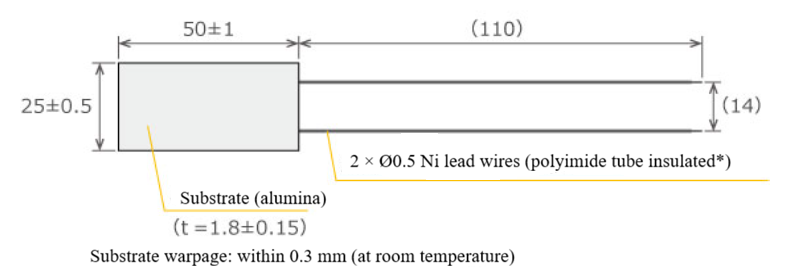

| Dimensions | 25mm×50mm | Watt Density (at room temperature) | 8W/cm2 |
| Lead Pitch | (14)mm | Maximum operating temperature | 500℃ |
| Voltage (AC) | 100V |
