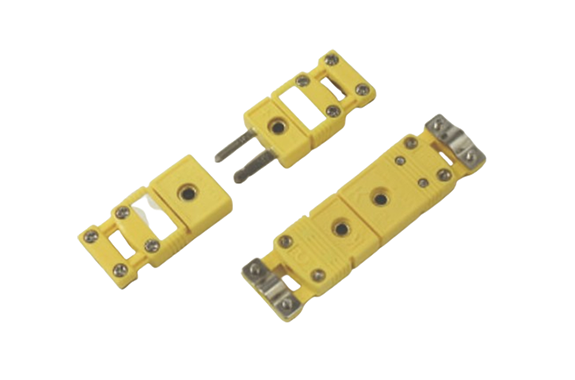

Sakaguchi Miniature Connector with Clamp Cap (K) Omega Thermocouple Connector
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: Miniature Connector with Clamp Cap (K)
Features
Specifications
| Thermocouple type | Heat-resistant temperature (°C) | ASTM/ANSI Color Codes | Pin Dimension (mm) | Product Code | |
|---|---|---|---|---|---|
| Plug | Jack | ||||
| K(CA) | 180 | Yellow | Spacing: 7.9 +:φ2.3 -:φ3.2 | SMPW-CC-K-M | SMPW-CC-K-F |
