Sakaguchi Electric Heaters CO.

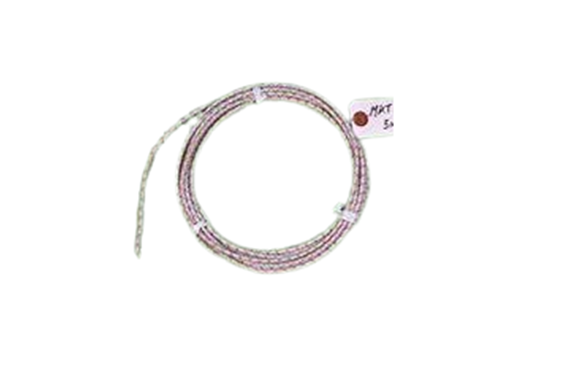

Sakaguchi MKT Heat-Resistant Wire
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Conductor configuration | Insulator thickness (mm) | Braid thickness (mm) | Standard Finish Outer Diameter (Approx.) (mm) | Product Code | |||
|---|---|---|---|---|---|---|---|
| Cross-sectional area (mm2)) | Number of wires/wire diameter (mm) | Outer Diameter (mm) | 100m Roll | Sale | |||
| 0.75 | 30/0.18 | 1.1 | 0.55 | 0.25 | 2.6 | MK075 | MK075C |
| 1.25 | 50/0.18 | 1.5 | 0.55 | 0.3 | 3.2 | MK125 | MK125C |
| 2.0 | 37/0.26 | 1.8 | 0.55 | 0.3 | 3.5 | MK020 | MK020C |
| 3.5 | 45/0.32 | 2.5 | 0.55 | 0.3 | 4.4 | MK035 | MK035C |
| 5.5 | 35/0.45 | 3.1 | 0.55 | 0.4 | 5.3 | MK055 | MK055C |
| 8.0 | 7/7/0.45 | 3.7 | 0.55 | 0.4 | 5.9 | MK080 | MK080C |
