Sakaguchi Electric Heaters CO.

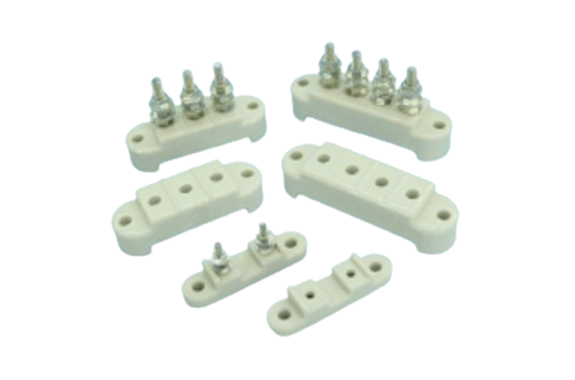

Sakaguchi Oblong Type Terminal Block
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

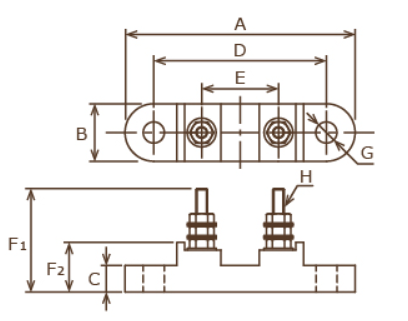

| Product Name | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F₁ (mm) | F₂ (mm) | G (mm) | H | Product Code (Without Screw) | Product Code (With Screw) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2P Oblong | 60 | 15 | 7 | 45 | 20 | 27 | 13 | 5 | M3 | CT2PK | CT2PKB |
| 3P Oblong | 73 | 24 | 16 | 60 | 15 | 46 | 21 | 6 | M5 | CT3PK | CT3PKB |
| 4P Oblong | 88 | 24 | 17 | 75 | 15 | 47 | 22 | 6 | M5 | CT4PK | CT4PKB |
