Sakaguchi Electric Heaters CO.

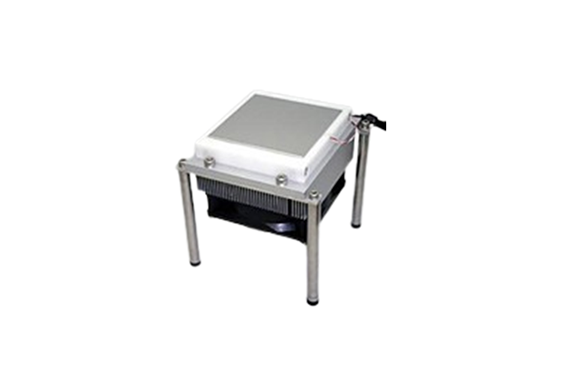

Sakaguchi Peltier Kit (SPE-UC-100)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Temperature control method | Electron temperature regulation by Peltier elements. | |
|---|---|---|

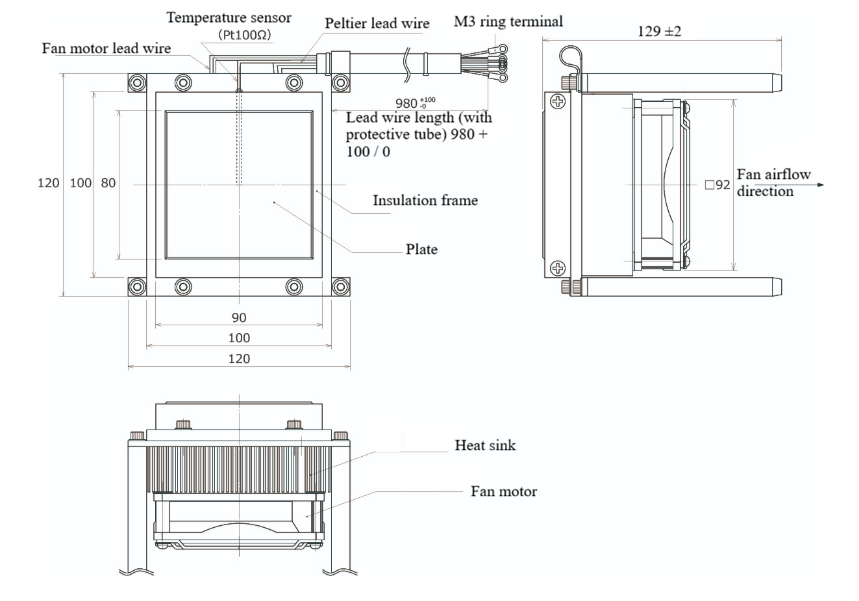

| Dimensions (mm) | W120×D120×H129 | |
| Plate Dimension (mm) | 80×80 | |
| Plate maximum allowable temperature (°C) | 80 | |
| Heat dissipation method | Forced air cooling with a fan | |
| Operating Environment Temperature (°C) | 0～40 | |
| Electronic Cooler Capability | Maximum heat absorption | 34W (ambient temperature 25°C, cooling plate temperature 25°C) |
| Maximum temperature difference | 40K (ambient temperature 25°C, cooling plate heat load 0W) | |
| Rated voltage and current | Peltier Elements | DC14V 6.0Amax (heat absorption = 0W maximum temperature difference) |
| Fan Motor | DC12V 0.21A | |
| Temperature Sensor Specifications | Platinum Resistance Temperature Measurement Pt100Ω 3-Conductor Specified Current 2mA | |
| Peltier Element Specifications | DC17.5Vmax 6.0Amax Maximum Heat Absorption 57W | |
| Product Code | SPE-UC-100A | |
