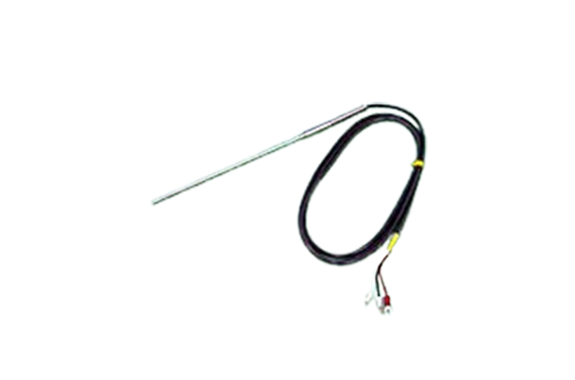

Sakaguchi R-35 Sheath Temperature Resistor

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: R-35

Features

  • It is highly accurate and stable, allowing for more precise temperature control.
  • Since the temperature is determined from the resistance value, there is no need for reference contacts on the compensation conductors.
  • Lead wires are generally 3-wire to prevent the addition of resistance.

Specifications

ToleranceJIS Class B
Sheath materialSUS316
TypesPt100ΩR100/R0＝1.3851
Lead Wirevinyl clad wire
Reference resistance valueRefer to JIS C 1604

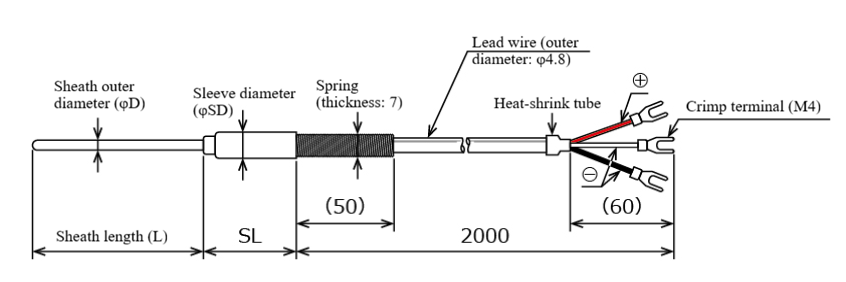

SheathSleeveProduct Code
Outer Diameter
(φD)		Length
(L)		Outer Diameter
(φSD)		Length
(SL)
3.2100836R35321NA
3.2200836R35322NA
4.81001040R35481NA
4.82001040R35482NA
