Sakaguchi Electric Heaters CO.
Sakaguchi Square Type Terminal Block
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

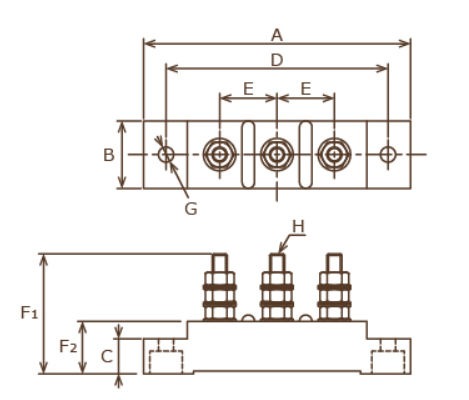

| Product Name | A | B | C | D | E | F₁ | F₂ | G | H | Product Code (Without Screw) | Product Code (With Screw) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1P Square | 62 | 21 | 15 | 43 | — | 47 | 22 | 6 | M6 | CT1PA | CT1PAB |
| 2P Square | 84 | 27 | 15 | 65 | 30 | 50 | 22 | 6 | M6 | CT2PA | CT2PAB |
| 3P Square | 107 | 27 | 14 | 89 | 23 | 48 | 21 | 6 | M6 | CT3PA | CT3PAB |
| 4P Square | 130 | 29 | 18 | 113 | 25 | 53 | 27 | 7 | M6 | CT4PA | CT4PAB |
| 1P Medium | 40 | 20 | 10 | 29 | — | 43 | 17 | 6 | M5 | CT1PM | CT1PMB |
| 1P Extra Large | 130 | 50 | 35 | 94 | — | 103 | 55 | 13 | M12 | CT1PLL | CT1PLLB |
| 2P Medium | 60 | 20 | 10 | 50 | 25 | 42 | 17 | 6.5 | M5 | CT2PM | CT2PMB |
| 3P Small | 61 | 12 | — | 49 | 13 | 27 | 13 | 3.5 | M3 | CT3PSS | CT3PSSB |
| 3P Medium | 85 | 20 | 10 | 74 | 24.5 | 43 | 17 | 6.5 | M5 | CT3PM | CT3PMB |
| 3P Large | 146 | 30 | 25 | 122 | 35 | 80 | 35 | 7.5 | M10 | CT3PL | CT3PLB |
| 3P Extra Large | 163 | 35 | 26 | 142 | 40.5 | 80 | 36 | 8.5 | M10 | CT3PLL | CT3PLLB |
