Sakaguchi Electric Heaters CO.

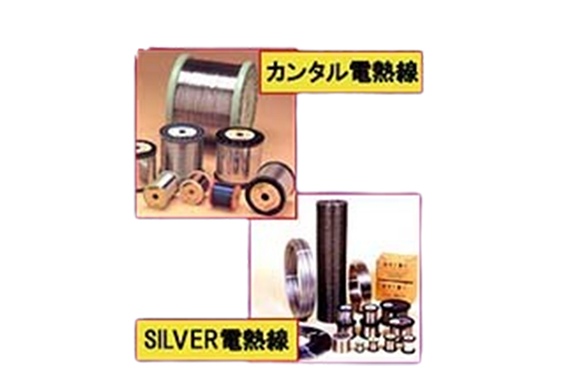

Sakaguchi Strip heating element (ribbon nichrome No.4)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Types | Maximum operating temperature | Contents |
|---|---|---|
| SILVER No.1 | 1150℃ | One type of nickel-chromium wire for electric heating, with oxidation resistance, excellent high-temperature strength, and good cold workability. It is widely used as a high-temperature heating element. |
| SILVER No.2 | 1000℃ | Compared to No. 1 in the two types of nickel-chromium wires for electric heating, oxidation resistance and high temperature strength are slightly inferior. It is used as a heating element below 1000°C. |
| SILVER No.3 SLIVER No.30 | 1250℃ | It is a chrome wire for electric heating and is intended for use at particularly high temperatures, and has good oxidation resistance and a slightly smaller temperature strength than 1,2, so be careful. No.30 has a long service life through a special dissolution method and the addition of active elements. |
| SILVER No.4 | 1100℃ | Cold working with chrome wire for electric heating is easier than No.3 and 30. It is not suitable for processing at high temperatures. It is widely used as a high-temperature heating element below 1100 degrees. |
