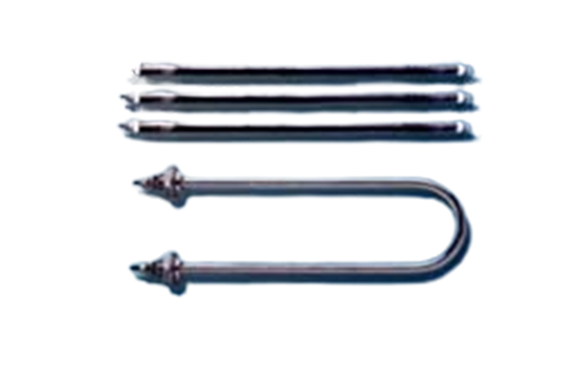

Sakaguchi U-shaped heater (sheath material: SUS304)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

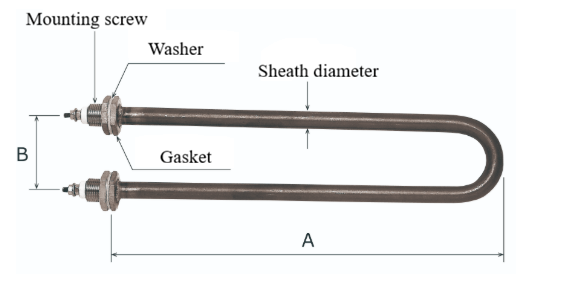

| Product Code | Voltage | Capacity | Ａ | Ｂ | Sheath diameter | Mounting screw |
|---|---|---|---|---|---|---|
| SUH15 | 100v | 500w | 225 | 55 | φ12 | M17 |
| SUH25 | 200v | |||||
| SUH175 | 100v | 750w | 265 | 55 | φ12 | M17 |
| SUH275 | 200v | |||||
| SUH110 | 100v | 1kw | 315 | 55 | φ12 | M17 |
| SUH210 | 200v | |||||
| SUH115※ | 100v | 1.5kw | 305 | 60 | φ12 | M17 |
| SUH215※ | 200v | |||||
| SUH220※ | 200v | 2kw | 310 | 60 | φ15 | M20 |
