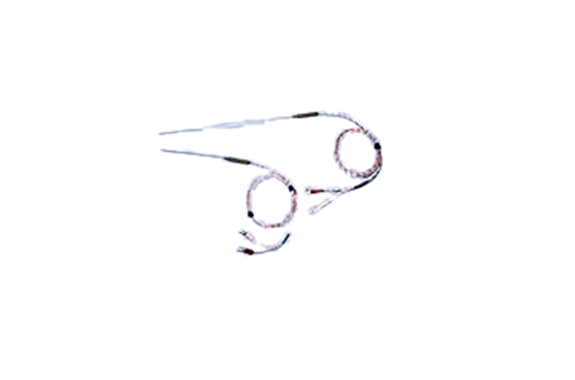

Sakaguchi Ultra-fine sheathed thermocouple K type

Manufacturer: Sakaguchi Electric Heaters CO., LTD

Features

  • Temperature measurement at a single point is possible Ideal when you want to measure the temperature of only one point of the temperature measurement object.
  • Responsiveness to temperature changes Due to its ultra-fine structure, it has excellent responsiveness because it senses temperature changes quickly.
  • Precise temperature measurement of very small parts If the gap of the temperature object to be measured is extremely small, it can smoothly insert into the gap to make accurate measurements.

Specifications

ToleranceJIS Class 2
Sheath materialSUS316
Temperature Measurement ContactsGrounding
Lead WireHeat-resistant glass-coated thermocouple (white background blue spiral)
Starting powerCompliant with JIS C 1605
Common Temperatures500℃(※)

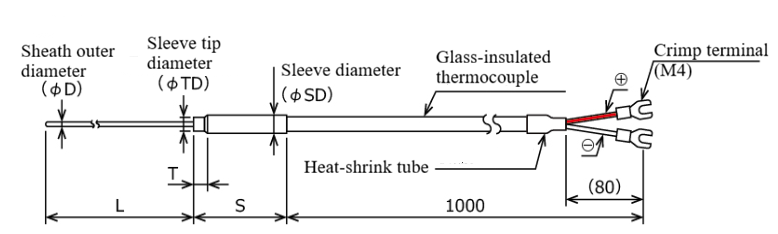

Product NameSheathSleeveGlass-coated thermocouple
core diameter
(φ)		Product Code
Outer Diameter
(φD)		Length
(L)		Tip Diameter
(φTD)		Tip Length
(T)		Diameter
(φSD)		Length
(S)
T-35 K φ0.5×100L0.5100255350.32T35051
T-35 K φ0.5×200L200T35052
T-35 Type K φ0.5×300L300T35053

REQUEST QUOTATION
