Sakaguchi Electric Heaters CO.

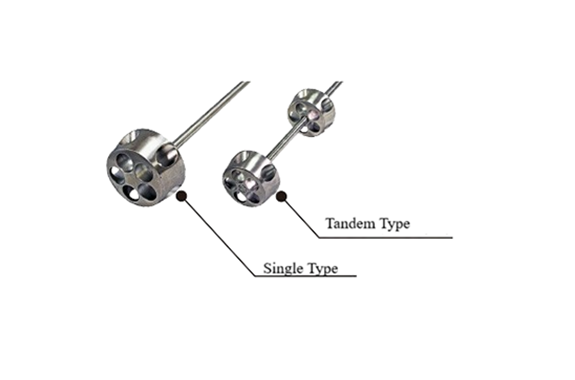

Sakaguchi Wide range (wide viscosity) type Bladeless stirring body (C-Mix)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Head | Shaft | Reference Stirring Force (Water) | Product Code | |||||
|---|---|---|---|---|---|---|---|---|
| Caliber (φ) | Type | Material | Diameter (φ) | Length (mm) | Material | Stirring capacity (l) | Speed (rpm) | |
| 65 | Wide | SUS316 | 10 | 550 | SUS316 | ～40 | 500～1000 | WC－065S05S－10550S |
| 80 | Wide | SUS316 | 10 | 550 | SUS316 | ～100 | 500～1000 | WC－080S05S－10550S |
| 80 | Wide | SUS316 | 13 | ~700 | SUS316 | ～100 | 500～1000 | WC－080F05S－13700S |
