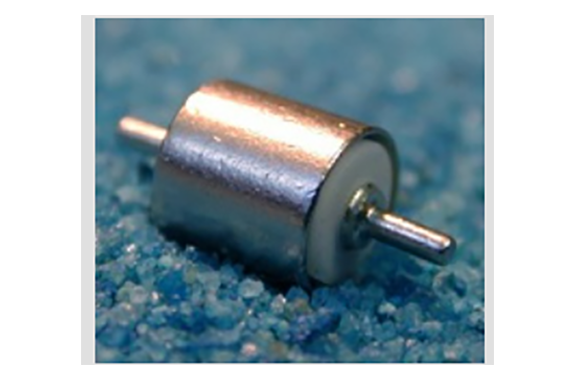

Manufacturer: Sankosha., Inc
Model: CA-Series

Features:

• Fits Inside Coaxial Cable or Connector
• UL 497B Recognized (File E140906)
• RoHS Compliant (100% Lead-Free)
• ISO 9001 and ISO 14001 Certified
• High Current and Multi Strike Capabilities
• Non-Radioactive and Mainenance Free
• Low Capacitance ≤ 1.5pF
• Nickel or Tin Plating

Applications:

• Coaxial Cable Communication Systems
• Transient Voltage Surge Suppression (TVSS)
• Routers and Access Points
• Wireless Communication Systems
• Tower Top and Tower Base Electronics
• Narrow and Broadband
• Modems/Cable Modems
• Broadband/CATV/Coaxial Protectors

Part Number	DC Breakdown Voltage(1)	Impulse Breakdown Voltage	Insulation Resistance(2)	Capacitance (1MHz)	Impulse Life	Impulse Discharge Current		Plating
	100V/s	1kV/μs			10/1000μs, 100A	8/20μsec, 5kA	8/20μsec, 10kA
CA-200	200V	≤ 700V	≥ 10,000 MΩ	≤ 1.5pF	300 Times	10 Times	1 Time	Nickel
CA-200(tin)	200V	≤ 700V	≥ 10,000 MΩ	≤ 1.5pF	300 Times	10 Times	1 Time	Tin
CA-400	400V	≤ 700V	≥ 10,000 MΩ	≤ 1.5pF	100 Times	10 Times	1 Time	Nickel
CA-400(tin)	400V	≤ 700V	≥ 10,000 MΩ	≤ 1.5pF	100 Times	10 Times	1 Time	Tin







Notes:

DC Breakdown Voltage Ranges are ± 25% Insulation Resistance measured at DC 100V.
