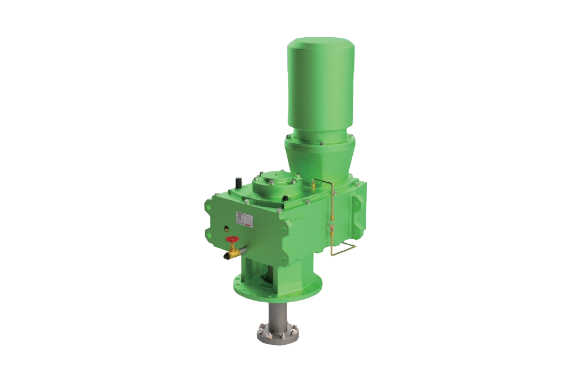

SATAKE Multi-S Mixer S3-S9 Series

Manufacturer: SATAKE MultiMix Corporation
Model: S3-S9 Series

Features

The innovative gear arrangement enables a more compact mixer design.
Standardized parts significantly reduce costs (compared to our previous models).
17 speed and motor output options adapt to all mixing scenarios.
Commercial motors can also be installed.
The new dry well structure contributes to environmental conservation.
The redesigned structure improves maintenance efficiency.

External Dimensions (Vertical Standard)

	Series	Motor Power (kW)		Dimensions (mm)																			Mixer Body (kg)
	Series	4P	6P	O.D.	P.D.	O.S.	P.S.	G	N	φZ	N.S.	φZS	F	E	L	H	J*	A	B	C*	D	M**	Estimated Weight	Motor Weight
One-stage reduction	S3	5.5	3.7	350	310	350	305	24	12	23	4	24	55	137	200	459	–	162	119	214	426	400	240	(80)
	S3	7.5	5.5	350	310	350	305	24	12	23	4	24	55	137	200	459	–	162	119	214	426	400	240	(80)
	S4	11	7.5	400	355	400	350	26	12	25	4	24	65	157	200	524	–	175	138	216	480	485	335	(110)
	S4	15	11	400	355	400	350	26	12	25	4	24	65	157	200	524	–	175	138	216	480	525	335	(130)
	S5	18.5	15	445	400	445	395	28	16	25	4	26	85	207	250	579	–	208	176	251	549	575	560	(195)
		22	18.5																			575	560	(195)
		30	22																			615	590	(225)
Two-stage reduction & Three-stage reduction	S3	0.75	–	350	310	350	305	24	12	23	4	24	55	137	200	364	–	162	224	109	426	260	160	(17)
		1.5	–														–					312	165	(24)
		2.2	–														12					328	175	(30)
		3.7	–														12					355	190	(48)
	S4	0.75	–	400	355	400	350	26	12	25	4	24	65	157	200	391	–	175	239	115	480	260	210	(17)
		1.5	0.75														–					312	215	(24)
		2.2	1.5														12					328	225	(30)
		3.7	–														12					355	240	(48)
		5.5	–														18					400	275	(80)
		7.5	–														18					400	275	(80)
	S5	2.2	1.5	445	400	445	395	28	16	25	4	26	85	207	250	453	12	208	287	141	549	328	325	(30)
		3.7	2.2														12					355	360	(48)
		5.5	–														18					400	390	(80)
		7.5	–																			400	390	(80)
		11	–																			485	415	(110)
		15	–																			525	435	(130)
	S6	5.5	3.7	490	445	490	435	28	16	25	4	28	105	237	300	553	18	251	346	175	624	400	590	(80)
		7.5	5.5																			400	590	(80)
		11	–																			485	610	(110)
		15	–																			525	630	(130)
		18.5	–																			575	750	(195)
		22	–																			575	750	(195)
		30	–																			615	850	(225)
	S7	–	5.5	560	510	560	490	30	16	27	4	35	120	275	350	656	18	256	381	200	680	400	850	(80)
		11	7.5																			485	870	(110)
		15	11																			525	890	(130)
		18.5	–														205					575	960	(195)
		22	–																			575	960	(195)
		30	22																			615	990	(225)
		37	30														260			225		660	1100	(325)
		45	37														260			225		660	1100	(325)
	S8L	18.5	15	620	565	—	—	32	20	27	—	—	130	295	350	727	205	290	429	201	762	575	1300	(195)
		22	15																			575	1300	(195)
		30	18.5																			615	1330	(225)
		37	–														260			225		660	1440	(325)
		37	–																	225		660	1440	(325)
		55	45																	275		685	1460	(365)
		75	55																			975	1730	(630)
		90	75																			1075	1820	(720)
	S8H	22	15	620	565	–	–	32	20	27	–		150	335	350	727	205	290	429	201	762	575	1390	(195)
		30	18.5																			615	1420	(225)
		30	22																			615	1420	(225)
		37	–														260			225		660	1530	(325)
		45	–																	225		660	1530	(325)
		–	55																	275		685	1550	(325)
		55	–																			975	1820	(630)
		90	75																			1075	1910	(720)
	S9L	30	18.5	745	680	–	–	34	20	33	–	–	160	347	400	833	217	353	530	208	921	615	2060	(225)
		30	22														217			208		615	2060	(225)
		37	30														241			225		660	2160	(325)
		45	30														241			225		660	2160	(325)
		55	–														276			275		685	1550	(365)
		75	–																			975	1820	(630)
		90	–																			1075	1910	(720)
	S9H	–	22	745	680	–	–	34	20	33	–	–	180	395	400	833	217	353	530	208	921	615	2190	(225)
		37	30														241			225		660	2290	(325)
		45	37														241			225		660	2290	(325)
		55	45														276			275		685	2330	(365)
		75	–																			975	2600	(630)
		90	–																			1075	2690	(720)

External Dimensions (Side Type Standard)

	Series	Rotation speed (min⁻¹)	Motor power (kW)	Number of poles (P)	Dimensions (mm)											Mixer body approximate weight (kg)	Motor weight (kg)
	Series	Rotation speed (min⁻¹)	Motor power (kW)	Number of poles (P)	O.D	P.D	N	Z	G	F	L	H	C	M*	D	Mixer body approximate weight (kg)	Motor weight (kg)
Single Reduction	S3	350	5.5	4	350	310	12	23	47	55	550	459	745	400	490	275	(80)
		350	7.5	4										400	520	275	(80)
		280	5.5	4										400	550	275	(80)
			7.5	4										400	600	280	(80)
			3.7	6										400	520	275	(80)
			5.5	6										400	550	275	(80)
		230	3.7	6										400	580	280	(80)
		230	5.5	6										400	620	285	(80)
	S4	350	11	4	400	355	12	25	51	65	650	524	885	485	550	380	(110)
		350	15	4										525	600	405	(110)
		280	11	4										485	640	385	(110)
			15	4										525	670	410	(130)
			7.5	6										485	600	390	(110)
			11	6										525	640	405	(130)
		230	7.5	6										485	670	380	(110)
		230	11	6										525	690	420	(130)
	S5	350	22	4	445	400	16	25	53	85	850	579	994	575	640	650	(195)
			18.5	4										575	620	650	(195)
			30	4										615	690	690	(225)
		230	22	6										615	830	710	(225)
			15	6										575	750	670	(195)
			18.5	6										615	790	700	(195)
		280	18.5	4										575	670	660	(195)
			22	4										575	730	660	(195)
			30	4										615	790	700	(225)
			15	6										575	670	650	(195)
			18.5	6										615	690	690	(195)
			22	6										615	730	690	(225)
