SATAKE MultiMix

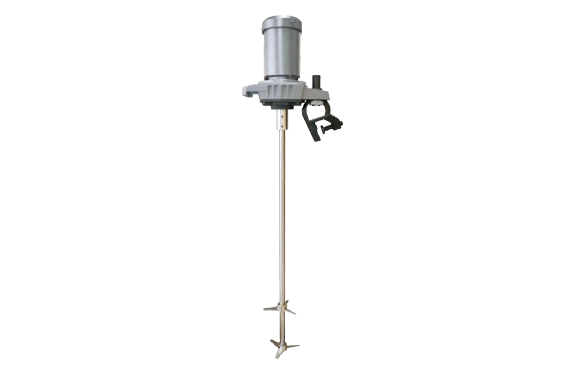

SATAKE Portable Mixer A710 / A715 High Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: A710 / A715
Feature
- The A710 and A715 are suitable for mixing that requires strong shear, such as in the case of forcing liquid to be entrapped in and powder to be entrapped and dissolved.
- Of course, it is slim and light, making it handy.
Standard specifications
| Model | Frame number | Power (kW) | Number of poles (P) | Phase and voltage (V) | Frequency (Hz) | Revolution (min-1) | Diameter (mm) | Stage | Shaft length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| A710-0.065A | 1 | 0.065 | 4 | Single-phase 100 | 50 | 1450 | 90 | 2 | 600 |
| 60 | 1750 | 80 | |||||||
| A710-0.1A | 1 | 0.1 | 4 | Single-phase 100 | 50 | 1450 | 100 | 2 | 800 |
| 60 | 1750 | 90 | |||||||
| A710-0.1B | 1 | 0.1 | 4 | Three-phase 200 | 50 | 1450 | 100 | 2 | 800 |
| 60 | 1750 | 90 | |||||||
| A710-0.2A | 2 | 0.2 | 4 | Single-phase 100 | 50 | 1450 | 120 | 2 | 1000 |
| 60 | 1750 | 110 | |||||||
| A710-0.2B | 2 | 0.2 | 4 | Three-phase 200 | 50 | 1450 | 120 | 2 | 1000 |
| 60 | 1750 | 110 | |||||||
| A710-0.4B | 3 | 0.4 | 4 | Three-phase 200 | 50 | 1450 | 135 | 2 | 1250 |
| 60 | 1750 | 120 | |||||||
| A715-0.4B | 4 | 0.4 | 6 | Three-phase 200 | 50 | 950 | 155 | 2 | 1500 |
| 60 | 1150 | 140 | |||||||
| A710-0.75B | 4 | 0.75 | 4 | Three-phase 200 | 50 | 1450 | 155 | 2 | 1500 |
| 60 | 1750 | 140 | |||||||
| A715-0.75B | 4 | 0.75 | 6 | Three-phase 200 | 50 | 950 | 175 | 2 | 1750 |
| 60 | 1150 | 160 | |||||||
| A710-1.5B | 5 | 1.5 | 4 | Three-phase 200 | 50 | 1450 | 175 | 2 | 1750 |
| 60 | 1750 | 160 |
Dimensional drawing
| Model | Frame number | Motor (kW) | (A) | B | B-MAX (Option) | φd | D (50Hz) | D (60Hz) | E | (F) | G | H (MAX) | I | J | (K) | L | Estimated weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A710-0.065A | 1 | 0.065 | 269 | 560 | 960 | 13 | 90 | 80 | 87 | 182 | 85 | 28 | 48 | 70 | 48 | 40 | 10 |
| A710-0.1A | 1 | 0.1 | 269 | 760 | 960 | 13 | 100 | 90 | 87 | 182 | 85 | 28 | 48 | 70 | 48 | 40 | 10 |
| A710-0.1B | 1 | 0.1 | 260 | 760 | 960 | 13 | 100 | 90 | 87 | 173 | 85 | 32 | 55 | 85 | 48 | 40 | 10 |
| A710-0.2A | 2 | 0.2 | 307 | 950 | 1200 | 16 | 270 | 101 | 102 | 205 | 105 | 32 | 55 | 85 | 56 | 45 | 14 |
| A710-0.2B | 2 | 0.2 | 277 | 950 | 1200 | 16 | 270 | 101 | 102 | 205 | 105 | 32 | 55 | 85 | 56 | 45 | 14 |
| A710-0.4B | 3 | 0.4 | 381 | 1190 | 1440 | 20 | 310 | 152 | 151 | 230 | 120 | 48 | 80 | 120 | 38 | 52 | 18 |
| A715-0.4B | 4 | 0.4 | 445 | 1425 | 1675 | 25 | 350 | 155 | 160 | 260 | 140 | 48 | 80 | 140 | 38 | 70 | 32 |
| A710-1.5B | 4 | 1.5 | 487 | 1675 | 1925 | 25 | 175 | 160 | 185 | 302 | 140 | 48 | 80 | 140 | 35 | 70 | 41 |
