Manufacturer: Sawada Manufacturing Co., Ltd
Model: TP type

Feature

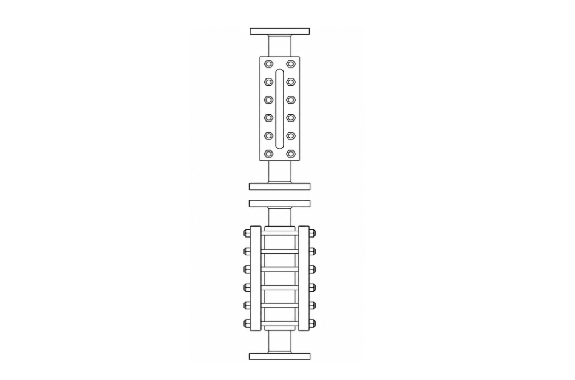

• This level gauge has a structure in which reinforced gauge glasses are placed on the front and back of the gauge body, sandwiched between covers and tightened with bolts so that the liquid level can be seen through the gauge glasses.
• Connectioin type: flange
• Maximum working pressure: 1.0 MPa
• Maximum operating temperature: 150°C*
• Base Material: STKM13A, SUS304TKA
• Lining Material: ETFE, PFA
• Installation length: 355-2500mm
• Annotation: * Varies depending on the lining material.

Visibility

• The surface of the liquid, the interface between the two liquids that do not mix, and the color of the liquid can be visualized through the two gauge glasses.
• If it is difficult to see the liquid level in a clear liquid or in a dark place, installing a lighting device behind the level gauge will make the liquid level easier to see.
