Japan, Seiwa Electric MFG. Co.Ltd

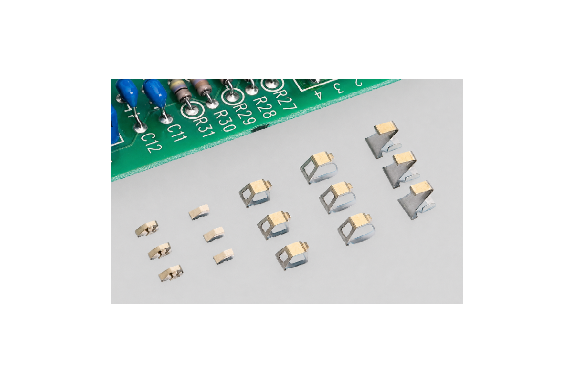

Seiwa E01J1511Y Automatic Mounting Finger EMC Products
Made in Japan
Manufacturer: SEIWA ELECTRIC MFG.CO.,LTD
Model: E01J1511Y
Feature
- There are extensive size variation.
- Since the fingers are on embossed carrier tape, they can be used in an automatic mounting line.
Material
- Phosphor Bronze for spring
[Ni (whole surface) / Au plating (contact and solder surfaces)] - Titanium Copper
[Ni (whole surface) / Au plating (contact and solder surfaces)]
Specifications
| Part No. | Initial Height (mm) | Width (mm) | Length (mm) | Materials (Following) | Qty. of Reel (Reel Dia.) | Recommended Use Range Compression (mm) |
| E01J8025P | 8.0 | 2.5 | 7.0 | ① | 1300 (ø 380) | 5.5～7.2 |
| E01J6022P | 6.0 | 2.2 | 5.2 | ① | 1800 (ø 380) | 3.5～5.4 |
| E01J4032Y | 4.0 | 3.2 | 4.0 | ② | 2000 (ø 330) | 2.8～3.6 |
| E01J3028Y | 3.0 | 2.8 | 5.0 | ② | 2500 (ø 330) | 2.1～2.6 |
| E01J3022Y | 3.0 | 2.2 | 2.8 | ② | 2500 (ø 330) | 2.2～2.6 |
| E01J2024Y | 2.0 | 2.4 | 4.5 | ② | 5000 (ø 330) | 1.4～1.8 |
| E01J1511Y | 1.5 | 1.1 | 3.0 | ② | 5000 (ø 330) | 1.15～1.35 |
| E01J1113Y | 1.1 | 1.3 | 3.0 | ② | 5000 (ø 330) | 0.65～0.9 |
