Japan, Seiwa Electric MFG. Co.Ltd

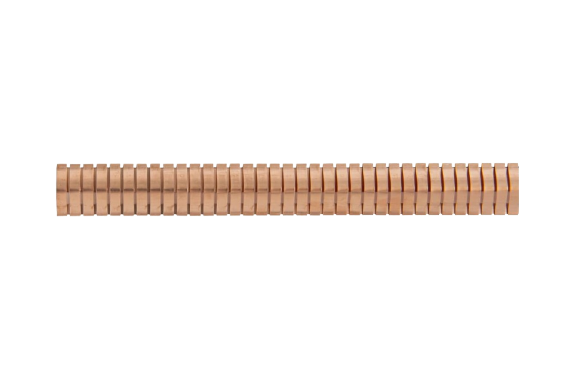

Seiwa E01S22 EMC Products
Made in Japan
Manufacturer: SEIWA ELECTRIC MFG.CO.,LTD
Model: E01S22
Feature
- Excellent spring characteristics realizes good durability.
- Various shapes of fingers can be used for any purpose.
- Surface finishes (plating) inhibit galvanic action.
Mount types
| B | Mounting track |
| R | Snap-on mounting |
| S | Stick-on mounting |
| C | Clip-on mounting |
| P | Special mounting |
Serial Number T (Soft type only)
| None | No plating |
| A | Gold |
| B | Silver |
| C | Bright tin |
| E | Bright nickel |
| F | Other |
Specifications
| Part No. | Standard Thickness (mm) | 25% Compression – 50% Compression (Reference) (N/mm) |
| E01S01 | 0.05 | 0.20～0.38 |
| E01S02 | 0.05 | 0.22～0.47 |
| E01S03 | 0.05 | 0.15～0.31 |
| E01S04 | 0.05 | 0.15～0.31 |
| E01S05 | 0.09 | 0.15～0.29 |
| E01S05T (Soft type) | 0.05 | 0.03～0.11 |
| E01S06 | 0.10 | 0.10～0.25 |
| E01S07 | 0.13 | 0.18～0.35 |
| E01S08 | 0.08 | 0.36～1.30 |
| E01S21 | 0.09 | 0.15～0.28 |
| E01S22 | 0.09 | 0.11～0.20 |
| E01S23 | 0.09 | 0.44～1.11 |
| E01S24 | 0.09 | 0.44～0.88 |
