SHIMADEN CO., LTD.

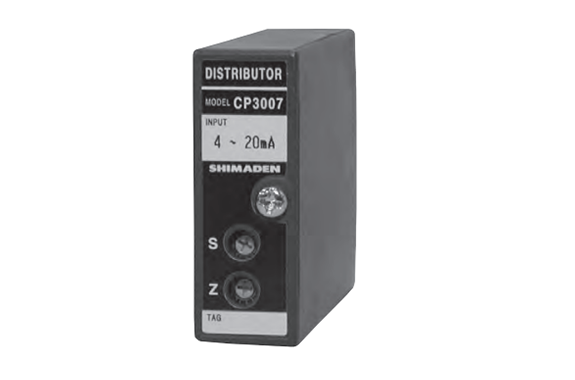

Shimaden CP3007 Distributor
Manufacturer: SHIMADEN CO., LTD.
Model: CP3007
Feature
- It supplies power to a two-wire transmitter and converts the 4-20mA signal into an isolated 1-5V DC output.
- It is an insulated output distributor.
Specifications
| Items | Details |
| Input Type | 4 to 20mA DC |
| Output Type | 1 to 5V DC |
| Current Input Resistance | 250Ω |
| Transmitter Power Supply | 24V DC |
| Maximum Current | 40mA |
| Conversion Accuracy | ±0.1% FS |
| Maximum Load Current | 2mA |
| Response Speed | ≤5ms |
| Power Supply | 24V DC ±10%, current consumption ≤70mA |
| Operating Temperature | 0 to 55°C |
| Humidity | 30 to 90% RH (no condensation) |
| Dimensions | H48 × W17.5 × D65 mm |
| Weight | ~70g |
