Manufacturer: SHIMADEN CO., LTD.

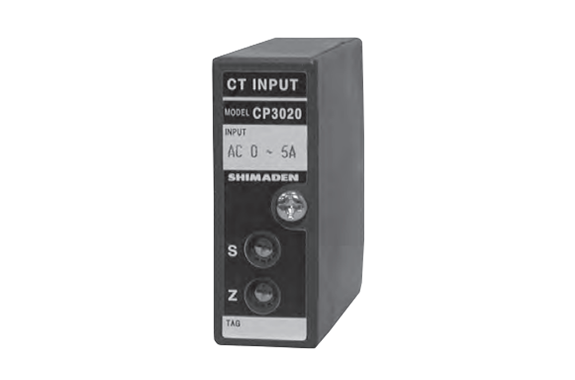

Model: CP3020

Feature

• It converts the alternating current signals from the current transformer (CT) into various DC signals and outputs them.
• It is an insulated output CT converter.

Specification

• The device accepts 0 to 1A AC and 0 to 5A AC inputs, with output options of 0 to 5V DC, 0 to 10V DC, 1 to 5V DC, and 4 to 20mA DC.
• It has an input loss of 0.5VA or less, operates at 50/60Hz, and offers a conversion accuracy of ±0.5%.
• The response speed is ≤100ms, and it operates on 24V DC ±10%, consuming ≤50mA.
• The temperature range is 0 to 55°C, with 30 to 90% RH humidity.
• Dimensions: H48 × W17.5 × D65 mm
• Weight: ~70g.
