Manufacturer: SHIMADEN CO., LTD.
Model: TH40 Series

Features

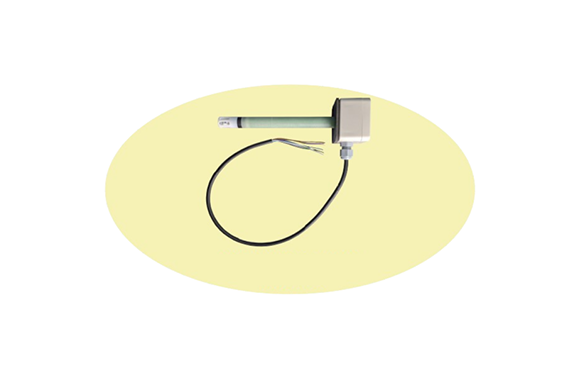

The TH40 series is a duct-mounted temperature and humidity detector for general air conditioning use. It uses a polymer sensor for humidity detection and a Pt100Ω for temperature detection, enabling high-precision temperature and humidity measurements. The detection range is 0–100°C and 0–100% RH.

Specification

Temperature detection element: Pt100
Number of temperature elements: 1 element
Temperature output types: Pt100, 0–1VDC, 1–5VDC, 0–5VDC, 4–20mADC
Temperature range: 0–100°C (sensor part)
Humidity detection element: Polymer sensor
Number of humidity elements: 1 element
Humidity output types: 0–1VDC, 1–5VDC, 0–5VDC, 4–20mADC
Humidity range: 0–100% RH
Power supply voltage: 9–25VDC
Weight: Approximately 112g
