SHOWA PRECISION INDUSTRIES

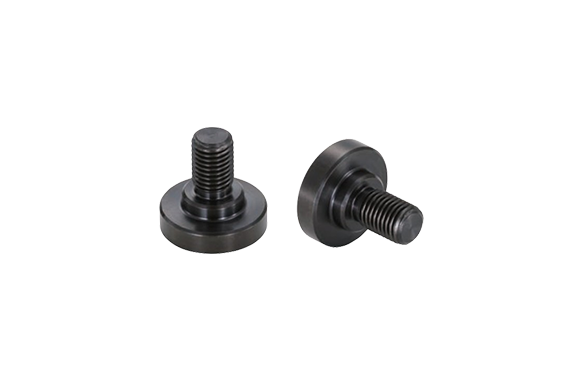

Showa Precision Industries Clamp Bolt For Face Mill Arbor
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: MBA-M Series
Specifications
| MODEL | L | L1 | L2 | L3 | φC1 | φC2 | G |
|---|---|---|---|---|---|---|---|
| MBA-M8 | 23 | 14 | 9 | 7 | 20 | 15 | M8 × P1.25 |
| MBA-M10 | 27 | 16 | 11 | 9 | 28 | 18 | M10 × P1.5 |
| MBA-M12 | 30 | 18 | 12 | 10 | 33 | 23 | M12 × P1.75 |
| MBA-M16 | 40 | 24 | 16 | 10 | 40 | 23 | M16 × P2.0 |
| MBA-M20 | 50 | 30 | 20 | 14 | 50 | 27 | M20 × P2.5 |
| MBA-M24 | 59 | 35 | 24 | 14 | 65 | 37 | M24 × P3.0 |
