SHOWA PRECISION INDUSTRIES

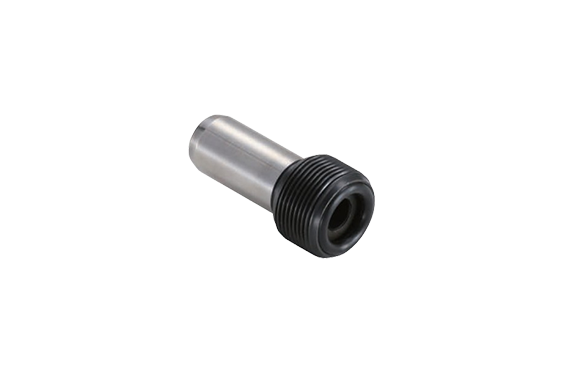

Showa Precision Industries HSK Shank Coolant Pipe
Manufacturer: SHOWA PRECISION INDUSTRIES CO., Ltd.
Model: CLP / CLPF Series
Specifications

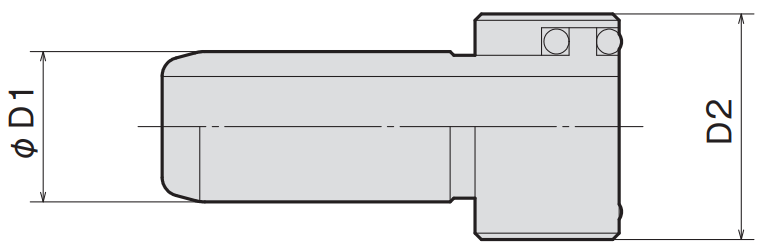

■Fixed Type
| MODEL | HSK No. | φD1 | D2 |
|---|---|---|---|
| CLP-032 | HSK32 | 6 | M10 × 1.0 |
| CLP-040 | HSK40 | 8 | M12 × 1.0 |
| CLP-050 | HSK50 | 10 | M16 × 1.0 |
| CLP-063 | HSK63 | 12 | M18 × 1.0 |
| CLP-080 | HSK80 | 14 | M20 × 1.5 |

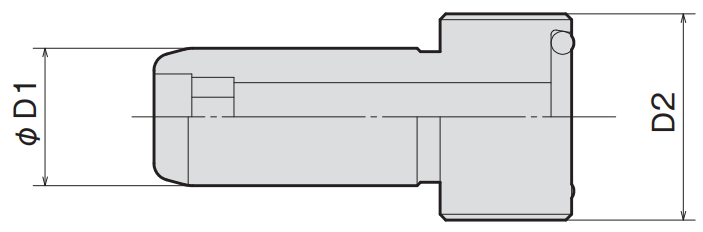

■Movable Type
| MODEL | HSK No. | φD1 | D2 |
|---|---|---|---|
| CLPF-040 | HSK40 | 8 | M12 × 1.0 |
| CLPF-050 | HSK50 | 10 | M16 × 1.0 |
| CLPF-063 | HSK63 | 12 | M18 × 1.0 |
| CLPF-100 | HSK100 | 16 | M24 × 1.0 |
