Simotec Ceramic Heater
Manufacturer: Shimonishi Giken Kogyo Co., Ltd

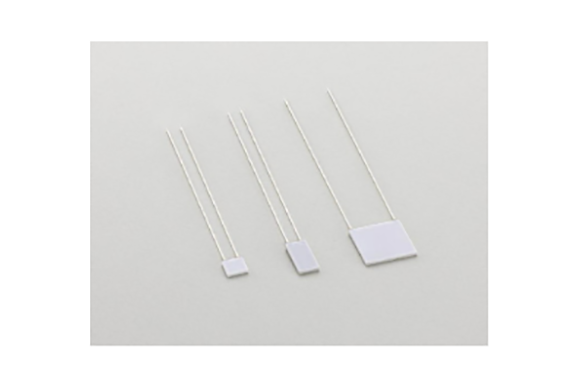

Product name: Ceramic Heater
overview
This heater has a tungsten resistor sandwiched between ceramic sheets with excellent heat resistance and insulation.
The tungsten resistor heating element is excellent for use in high temperature ranges.
It can withstand temperatures up to 500°C, ensuring the high temperatures that only ceramic materials can provide.
Features
- Fast temperature rise and excellent response
- Uses ceramic with excellent oxidation and chemical resistance for long life
- ・Small, thin, and compact, it helps save space
Purpose of use
Home appliance parts (electric kettles, humidifiers, aroma diffusers, coffee warmers, fan heaters, hair irons, etc.)
Equipment parts (floor heating, bathroom dryers, switchboards, etc.)
Automotive parts (car air conditioners, anti-fogging glass, vehicle seat heaters, etc.)
Stationery parts (laminators, etc.)
Other beauty equipment, heating parts for facial massagers, heating parts for beverage servers, etc.
specification
| Part Number | size | Voltage | capacity | Watt Density | Maximum operating temperature* |
|---|---|---|---|---|---|
| SCPU 10×10 | 10×10 mm | 40V (AC/DC) | 40W±20% | 40W/cm² | 500℃ |
| SCPU 20×10 | 20×10 mm | 100V (AC/DC) | 60W±20% | 30W/cm² | 500℃ |
| SCPU 25×25 | 25×25 mm | 100V (AC/DC) | 100W±20% | 16W/cm² | 500℃ |
