Sinfonia Controller Parts Feeders

Manufacturer: Sinfonia Technology co., LTD, Ltd.

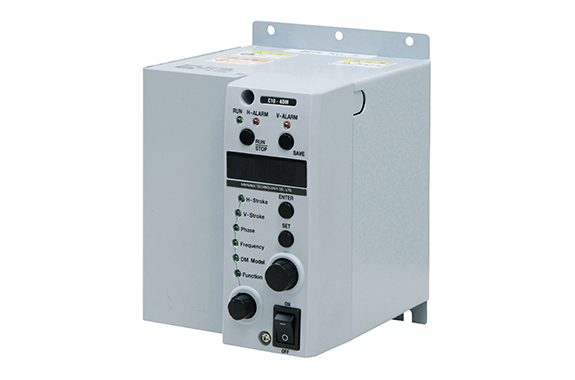

Model: Controller

Features

Simple and easy start up
Stroke sensor gain adjustment is not required. Just by selecting a drive unit model at the initial setting stage, necessary parameters are set automatically.
Easy operation
‘Selection Dial’ and ‘Setting Encoder’ allow for easy operation for anyone.
Save more space
This controller has the same dimensions as C10-5VF/5VFEF and the footprint is reduced by 36% from the previous model.
Easy wiring
Between a driving unit and a controller are connected by connectors.
Energy-saving auto-tuning
Auto tuning function reduces power consumption by tracking the resonance point and keeping vibration frequency on it continuously.
Electronic control gives optimal vibration
Electronic control of horizontal/vertical amplitudes and phase difference provides ideal vibration characteristics for any type of workpiece.

Dimensions

Unit: mm

Dimensions Chart

Model		C10-4DM
Input power		AC200-230V　±10%　50/60Hz
Control system		PWM system
Output	Voltage	0~190V
	Vibration frequency	28~45Hz, 65~120Hz, 90~180Hz
	Max. current	horizontal: 4A vertical: 2A
Oparating mode	Standard drive	Automatic tuning to horizontal resonance point. By amplitude phase control without frequency setting
Additional features	Constant phase difference control	Horizontal/vertical amplitude phase difference kept constant
	Speed selection	Choice of 4 pre-set speeds by external signal
	Start/Stop control	Stops and starts by external signal
	Output signal	Outputs signal tuned to unit operation
	Soft start	Start-up time 0.2~4.0 seconds
	On/Off delay timer	Delay time 0.2~60 seconds
	Sensor power source	3P power plug gives DC12V, max. 80mA
Synchronized power source	Function	Power source synchronized to parts feeder operation (RUN)
	Control system	On/Off control through a triac
	Output voltage	As power source input to controller
Other	Max. current	2A
	Noise resistant voltage	Above 1000V
	Ambient temperature range	0~40℃
	Ambient humidity range	10~90% (No condensation)
	Applicable Space	Indoor (Place where no corrosive gas, and dust.)
	Color of case	Japan Paint Industry Association U75-70D
	Weight	2.0kg
Compatible equipment		DM-30C, 38C, 45C, 65C DMS-15C, 20C, 25C, 30C, 38C, 45C
