SINFONIA TECHNOLOGY CO., LTD.

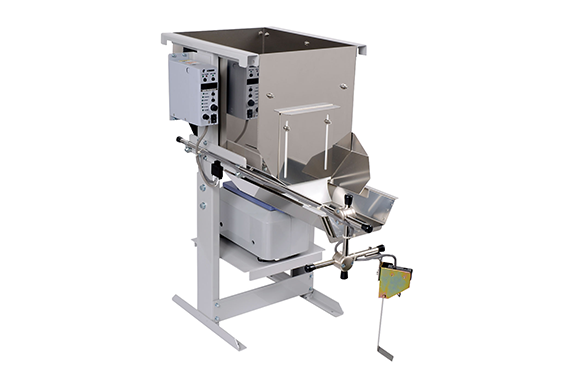

Sinfonia Feeder-Type Hoppers Parts Feeders
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Feeder-Type Hoppers
Features
Attaching a feeder to the hopper ensures smooth parts delivery and minimizes operating noise.
Dimensions
Dimensions Chart/including Feeders
Unit: mm
| Hopper capacity (ℓ) | Model | Compatible parts feeders | Permissible weight of work (kg) | A | B | C | E | F | G | H | I | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | HPF-15-3815B | EA-25, ER-25B, EA-30, ER-30B | 24 | 250 | 350 | 322 | 675–875 | 320 | 7 | 270 | 275 | 380 |
| 30 | HPF-30-4215B | EA-25, ER-25B, EA-30, ER-30B, EA-38, ER-38B, EA-45, ER-45B | 24 | 300 | 400 | 372 | 775–975 | 350 | 7 | 290 | 325 | 420 |
| 60 | HPF-60-6030B(*) | ER-55B, ER-65B | 56 | 450 | 600 | 553 | 865–1215 | 500 | 9 | 400 | 480 | 600 |
| 100 | HPF-100-6030B(*) | ER-55B, ER-65B | 56 | 450 | 600 | 553 | 1015–1365 | 500 | 9 | 400 | 480 | 600 |
| Hopper capacity (ℓ) | Model | L | N | Sliding base No. × P | S | T | Weight (kg) | Electromagnetic feeder | |
|---|---|---|---|---|---|---|---|---|---|
| Feeder model | Rated current (A) | ||||||||
| 15 | HPF-15-3815B | 381–581 | 150 | 5×50 | 310 | (225) | 46 | CF-2 | 0.5 |
| 30 | HPF-30-4215B | 381–581 | 150 | 5×50 | 360 | (265) | 50 | CF-2 | 0.5 |
| 60 | HPF-60-6030B | 430–780 | 300 | 8×50 | 536 | (358) | 140 | CF-3 | 1.0 |
| 100 | HPF-100-6030B | 430–780 | 300 | 8×50 | 536 | (358) | 147 | CF-3 | 1.0 |
*1. Hoppers are available only in stainless steel.
*2. Vibration frequency: 50–70 Hz; rated voltage: 200/220 V; compatible controller: C10-1VFEF. No standard 100/110 V model available.
*3. Paint finish: Munsell N7.5
*4. Hopper heights are adjustable in 50 mm increments: 5 levels for 15/30 L models and 8 levels for 60/100 L models.
*5. Heavy-duty 60/100 L hoppers with a maximum permissible workpiece weight of 112 kg are available as non-standard models.
*Manufactured to order.
