SINFONIA TECHNOLOGY CO., LTD.

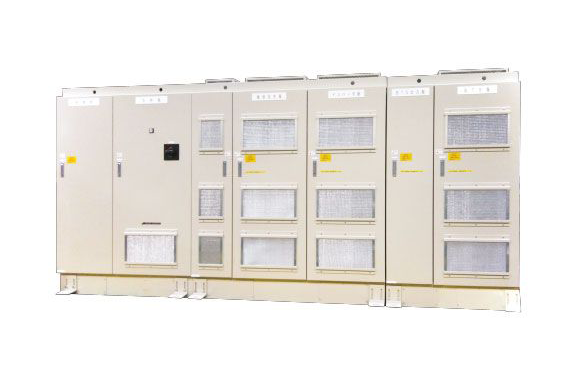

Sinfonia High-Voltage/ High-Current Load Simulator Testing Systems
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: High-Voltage/ High-Current Load Simulator
Features
We have developed a high-response model that delivers rapid output voltage response with a voltage rise rate of 400 V/ms.
*It is between 10% and 90% of the maximum voltage.
Specification
| Rating Output Capacitance Degree | 700kW |
|---|---|
| Rating output current | ±1500A continuous (~700V) |
| Control method | Step-up voltage chopper control method |
| Control mode | Constant voltage control, droop characteristic control |
| Output Voltage Control Range | DC10V~1000V |
| Output Voltage Settling Accuracy | ±0.5%FS |
*2 in parallel
