SINFONIA TECHNOLOGY CO., LTD.

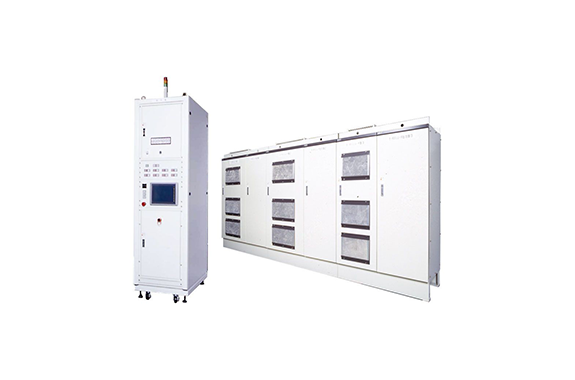

Sinfonia Inverter Load Simulator Testing Systems
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Inverter Load Simulator
Features
Stationary inverter test equipment capable of testing power and regenerative operations equivalent to driving a motor.
Specification
| Rating current (continuous) | 400Arms (More than 1Hz), 400Apeak (Less than 1Hz) *No current reduction by frequency |
|---|---|
| Maximum current (1min) | 500Arms (More than 1Hz), 500Apeak (Less than 1Hz) *No current reduction by frequency |
| Maximum voltage (between lines) | 1000Vrms |
| EUT capacity *EUT: Equipment Under Test | 200kW |
| Frequency range | 0~1200Hz |
| Number of possible parallels | 3 in parallel *Up to 3 times the current value and EUT capacity |
