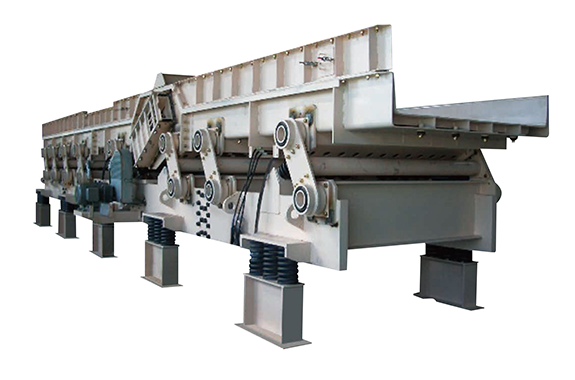

Sinfonia MVCB Type Balanced Conveyor Vibrating Equipment

Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: MVCB Type Balanced Conveyor

Features

Balanced conveyors are designed to prevent environmental vibration by the use of a simple structure to prevent vibration from being transmitted to the floor. An effective balance of trough and counterweight neutralizes vibration, and the equipment is also mounted on vibration-damping springs, minimizing the degree of vibration transmitted to the floor or base.
1. No Vibration Reaches the Base or Floor
The stable, vibration-neutralizing mechanism prevents vibration from reaching the base or floor, eliminating the need for a special installation foundation.
2. Low Electricity Consumption
Resonating springs amplify the vibration generated by the eccentric crank mechanism, significantly reducing electricity consumption.
3. Minimal Downtime and Easy Servicing and Maintenance
The simple structure features only a few rotating components and wear-prone parts, making servicing and maintenance straightforward. Additionally, its reliable design minimizes breakdowns and downtime.
4. Easy Adaptation for Fully Sealed Conveyance
Operators can easily adapt the trough for fully sealed conveyance to prevent fine powder materials from dispersing into the air, maintaining a clean and healthy working environment.
5. Wide Range of Applications
The conveyor efficiently performs processes such as screening, draining, drying, and cooling during material transport, making it suitable for a wide range of industrial applications.

Structural diagram

Specifications

Standard Specifications

Model	Capacity (T/Hr)	Vibration per min (Hz)
MVCB-150	5	6.7~10.8
MVCB-300	20	6.7~10.8
MVCB-450	35	6.7~10.8
MVCB-600	50	6.7~10.8
MVCB-750	65	6.7~10.8
MVCB-900	80	6.7~10.8
MVCB-1050	95	6.7~10.8
MVCB-1200	110	6.7~10.8
MVCB-1350	125	6.7~10.8
MVCB-1500	140	6.7~10.8
MVCB-1650	155	6.7~10.8
MVCB-1800	170	6.7~10.8
MVCB-2000	185	6.7~10.8

Model	Trough length (m)
Model		3	4	5	6	8	10	12	15	18	20	25	30
MVCB- 150	Motor (kW)	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2.2	2.2	2.2	3.7
MVCB- 150	Gross weight (kg)	440	580	730	870	1160	1450	1740	2180	2610	2900	3630	4360
MVCB- 300	Motor (kW)	1.5	1.5	1.5	1.5	1.5	1.5	2.2	2.2	3.7	3.7	3.7	5.5
MVCB- 300	Gross weight (kg)	670	890	1110	1340	1780	2230	2670	3340	4010	4450	5570	6680
MVCB- 450	Motor (kW)	1.5	1.5	1.5	1.5	1.5	2.2	2.2	3.7	3.7	3.7	5.5	5.5
MVCB- 450	Gross weight (kg)	800	1060	1330	1600	2130	2660	3190	3990	4790	5320	6650	7980
MVCB- 600	Motor (kW)	1.5	1.5	1.5	1.5	2.2	2.2	3.7	3.7	3.7	5.5	5.5	7.5
MVCB- 600	Gross weight (kg)	970	1300	1620	1950	2590	3240	3890	4860	5840	6490	8110	9730
MVCB- 750	Motor (kW)	1.5	1.5	2.2	2.2	3.7	3.7	3.7	5.5	7.5	7.5	5.5×2	5.5×2
MVCB- 750	Gross weight (kg)	1530	2040	2550	3060	4080	5100	6120	7650	9180	10200	12750	15300
MVCB- 900	Motor (kW)	1.5	1.5	2.2	2.2	3.7	3.7	5.5	5.5	7.5	7.5	5.5×2	5.5×2
MVCB- 900	Gross weight (kg)	1720	2290	2870	3440	4590	5740	6880	8610	10330	11470	14340	17210
MVCB-1050	Motor (kW)	1.5	2.2	2.2	3.7	3.7	5.5	5.5	7.5	7.5	5.5×2	5.5×2	7.5×2
MVCB-1050	Gross weight (kg)	1910	2550	3190	3820	5100	6370	7650	9560	11470	12750	15930	19120
MVCB-1200	Motor (kW)	1.5	2.2	2.2	3.7	3.7	5.5	5.5	7.5	5.5×2	5.5×2	5.5×2	7.5×2
MVCB-1200	Gross weight (kg)	2100	2800	3500	4210	5610	7010	8410	10510	12620	14020	17520	21030
MVCB-1350	Motor (kW)	1.5	2.2	3.7	3.7	5.5	5.5	7.5	7.5	5.5×2	5.5.×2	7.5.×2	7.5×2
MVCB-1350	Gross weight (kg)	2340	3110	3890	4680	6230	7790	9340	11680	14020	15570	19470	23360
MVCB-1500	Motor (kW)	2.2	2.2	3.7	3.7	5.5	5.5	7.5	5.5×2	5.5×2	5.5×2	7.5×2	11×2
MVCB-1500	Gross weight (kg)	2530	3370	4210	5060	6740	8420	10110	12630	15160	16850	21060	25270
MVCB-1650	Motor (kW)	2.2	3.7	3.7	3.7	5.5	7.5	7.5	5.5×2	5.5×2	7.5×2	7.5×2	11×2
MVCB-1650	Gross weight (kg)	2760	3680	4600	5520	7350	9200	11040	13800	16560	18390	22990	27590
MVCB-1800	Motor (kW)	2.2	3.7	3.7	3.7	5.5	7.5	7.5	5.5×2	5.5×2	7.5×2	7.5×2	11×2
MVCB-1800	Gross weight (kg)	2960	3940	4920	5900	7860	9840	11800	14760	17700	19660	24580	29500
MVCB-2000	Motor (kW)	2.2	3.7	3.7	5.5	5.5	7.5	5.5×2	5.5×2	7.5×2	7.5×2	11×2	11×2
MVCB-2000	Gross weight (kg)	3250	4340	5430	6520	8680	10860	13020	16280	19540	21700	27130	32560

１. Max capacity is for conveying sand (apparent bulk density 1.5, moisture content 4-6%) in a horizontal trough.
２. Motor capacity and gross weight may vary according to the handling material type, and use of liner.
３. Motor capacity and gross weight assume use of liner without cover.

Outer Dimensions

Dimension Table

Unit: mm

Model	B
MVCB-150	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-300	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-450	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-600	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-750	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-900	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1050	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1200	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1350	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1500	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1650	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-1800	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000
MVCB-2000	3000	4000	5000	6000	8000	10000	12000	15000	18000	20000	25000	30000

Model	A	C	D	E (max)	F
MVCB-150	150	140	450	750	600
MVCB-300	300	200	550	800	600
MVCB-450	450	200	700	1000	600
MVCB-600	600	250	850	1100	650
MVCB-750	750	250	1000	1200	700
MVCB-900	900	250	1150	1250	700
MVCB-1050	1050	250	1300	1350	700
MVCB-1200	1200	250	1450	1400	750
MVCB-1350	1350	250	1600	1450	750
MVCB-1500	1500	250	1750	1550	750
MVCB-1650	1650	250	1900	1650	800
MVCB-1800	1800	250	2050	1750	850
MVCB-2000	2000	250	2250	1850	900
