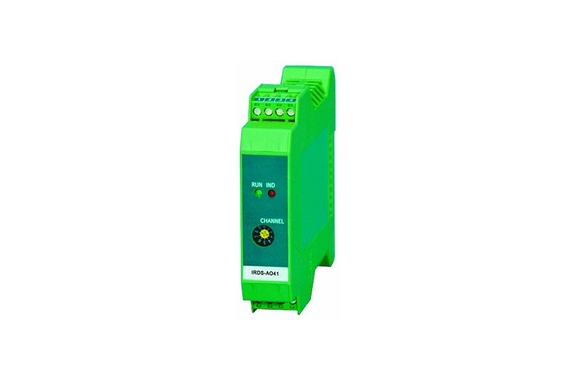

Suntest IRDS-AO4. Analogue OUTPUT Module

Manufacturer: Suntest Co.,Ltd
Model: IRDS-AO4

This is a slave module for analogue OUTPUT of IRD series.
It has 4 output ports for voltage or current.

Having 4 ports for voltage or current output.
Voltage range : ±10V, resolution : 1/60000
Current range : 0-20mA, resolution : 1/30000
Output analogue data which is transferred from other IRD slave module or from host industrial network through IRD master module.
Possible to make inside parameters setting (offset value to the output analogue and low pass filter degree etc.) through IRD master module over host industrial network or the dedicated Windows software (IRD Manager).
Possible to make the upper and lower limit in output range. With digital low pass filter for eliminating noise on output analogue data.
0.2ms (5kHz) update inside *1
RoHS compliant

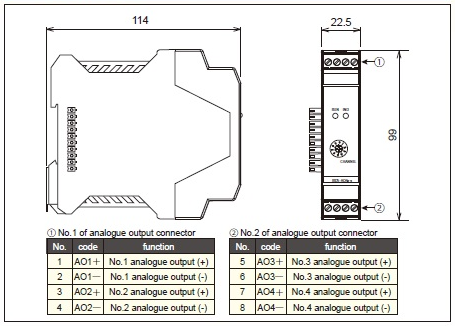

Model

IRDS (1) – AO4 (2) (3) – (4)

(1) series
IRDS : IRD slave module

(2) module function
AO4 : 4 channels analogue output

(3) output specifications

1	: voltage output
2	: current output

(4) special specification code

Module series	Memory block	Input byte	Output byte
IRDS-AO4	4	8	24

Items		IRDS-AO41	IRDS-AO42
Analogue output	analogue output ports	4 four channels
	update cycle	0.2ms^※1
	accuracy	±0.2%FS
	output signal	voltage(±10V) external load resistance : ≥1kΩ	current(0~20mA) external load resistance : ≤500Ω
	resolution	for full scale -30000~30000(0.33mV/bit)	for full scale 0~30000(0.66μA/bit)
Isolation	specification	The inside circuit is isolated from power supply by digital isolator. Not isolated between 4 ports each other. Withstand voltage:500V
Power supply	rating	DC24V (±10%) 160mA supplied from IRDM (master module)
