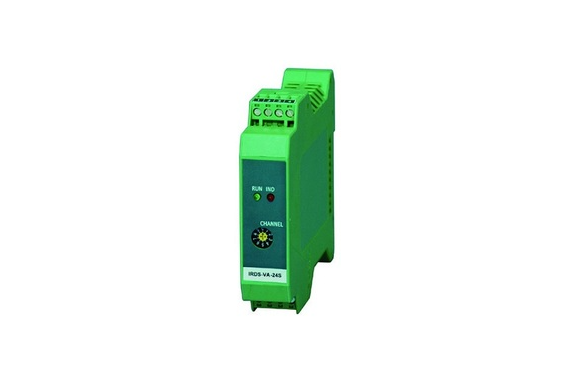

Suntest IRDS-VA. Digital Amp Module For Proportional Solenoid Valve

Manufacturer: Suntest Co.,Ltd
Model: IRDS-VA

This is a slave module for proportional solenoid valve amp of IRD series.
It receives command signal from the host system through the industrial network and outputs current to proportional solenoid valve.

*Not possible to drive servo valve, proportional solenoid valve having LVDT inside or integrated amplifier.

[ Function and Features ]

Driving one proportional solenoid valve with 1800mA or 1000mA.
Possible to set or change inside parameters through IRD master module over the industrial network or the dedicated Windows software (IRD Manger).
Setting Max. and Min. current output values.
Possible to drive with switch signal to the valve as well (switch : max. 16 points). For directional flow control valve, 16 points for one direction, total 32 points.
Setting current output value (for ON and OFF) and each time constant. With emergency stop function.
Monitoring output current value and I/O signal status.
RoHS compliant

Model

IRDS (1) – VA (2) – (3) – (4)

(1) series
IRDS : IRD slave module

(2) module function
VA : amp for proportional solenoid valve

(3) External power supply

24S	: DC24V
48S	: DC48V
12S	: DC12V

(4) special specification code

blank	: standard
others	: customer’s special option

Occupied memory block and input / output bytes

Module series	Memory block	Input byte	Output byte
IRDS-VA	2	8	8

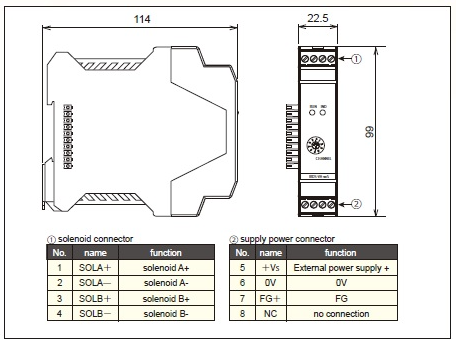

Specifications

Items	IRDS-VA-24S	IRDS-VA-48S	IRDS-VA-12S
Valve type	directional flow control valve, pressure control vale, flow control valve
Drive number of valve	one
Drive number of solenoid	two (directional flow control valve) one (pressure control valve, flow control valve)
Max. output current	1800mA	1000mA	1800mA
Accuracy of output	±1% R.S.
Number of steps	16 points ( 32 points in case of using directional flow control valve)
Dither frequency	20~2000Hz
Rising / falling time	1 × 10^-3 ~ 3600 × 10³ s
External current consumption	2.2A	1.2A	2.2A
External power supply	24V (±10%)	48V (±10%)	12V (10~16V)
System current consumption	100mA
System power supply	DC24V (±10%) supplied from IRDM (master module)
