Suntest Option-1: High Ambient Temp. Version+
Manufacturer: Suntest Co.,Ltd

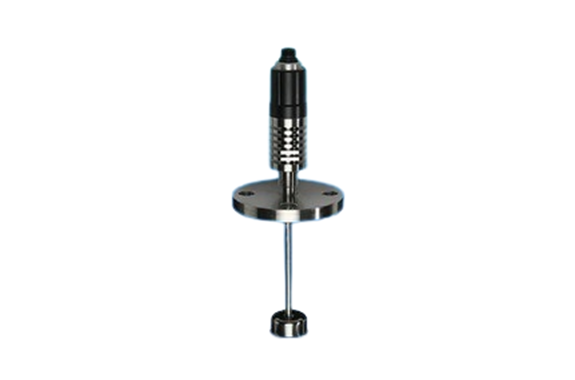

This is high ambient temperature probe (rod parts only) of Heavy Duty version. Employing selected materials and electronics, this option works in ambient temperature up to 200°C (rod parts only). (Please consult us in case of more than 200°C.) As the operating temperature of probe head is to be lower than +80°C, cooling sensor head is required at user side or we recommend heat-sink option.
Specifications
| Non-linearity | ≦±0.1%FS Typ. |
|---|---|
| Resolution | (Analogue) ≦0.01%FS (Digital) 0.1mm |
| Repeatability （room temp.) | ≦±0.05%FS |
| Temp. drift | ≦±70ppmFS/°C |
| Max. Pressure | 35MPa (probe rod) |
| Operating temp. | probe head :-5°C〜+80°C probe rod :〜100°C(Model:H0) :〜120°C(Model:H1) :〜200°C(Model:H2) |
- The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
- The specification of stroke less than 300mm is equal that of stroke 300mm.
【 Corresponding temperature (rod part only)】
- H0: 100 °C
- H1: 120 °C
- H2: 200 °C
【Available probe】
| Probe | H0 | H1 | H2 |
|---|---|---|---|
| GYcRP | H0 | H1E | H2E |
| GYHR | Standard | H1 | H2 |
| GYHTR | Standard | Standard | × |
| GYcAT | H0 | × | × |
* With heat-sink : H1E, H2E
Without heat-sink : H0, H1

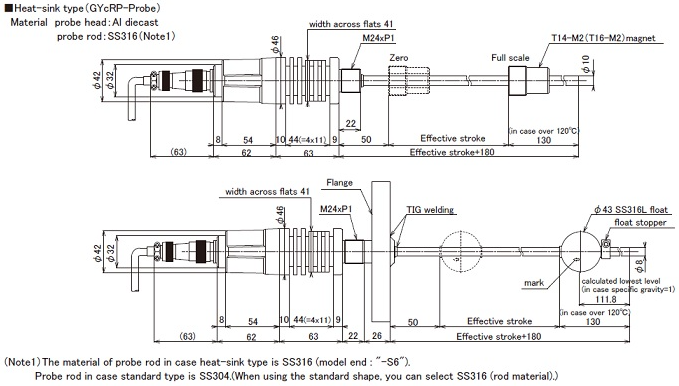

Dimensions
