Suntest SSPC-03 Converter
Manufacturer: Suntest Co.,Ltd
SSI → Parallel signal converter
SSPC-03 converts SSI (Synchronous Serial Interface) which is often used as a serial data transmission method to parallel data. It’s possible to change SSI bit length and the SSI clock frequency by a DIP switch. It’s possible to choose N channel output or P channel output.
Specifications
| SSI bit length | Programmable 17〜32 bit |
|---|---|
| Clock frequency | 125k/ 250k/ 500k/ 1MHz |
| Parallel output | FET open drain output (N channel or P channel) |
| Power supply | For SSPC :+24VDC±5%(≦35mA) For Output :+12-24VDC±5%(≦15mA) |
| Operating temp. | 0°C〜+60°C |
| Storage temp. | -20°C〜+75°C |
Model No.
SSPC-03-①
①Output channel
N :N channel output (sink type, NPN)
P 😛 channel output (source type, PNP)

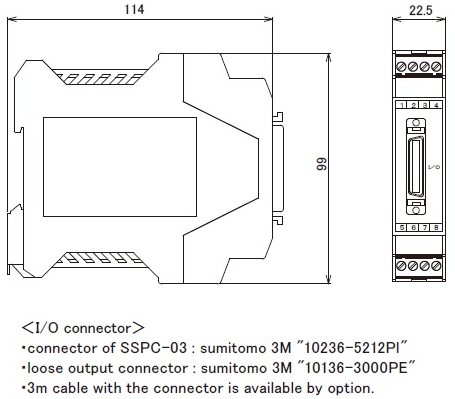

Dimensions
