Takigen

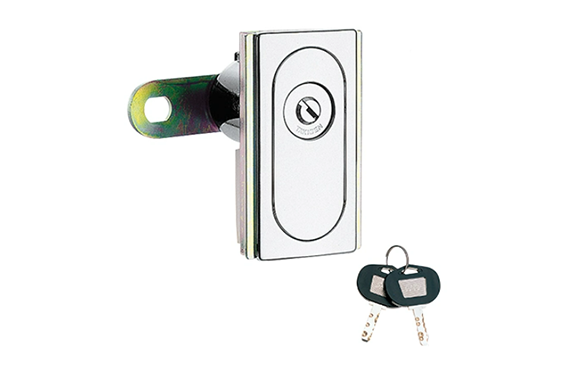

Takigen A-419 Pop Handle
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-419
Locks that meet Japan Vending Machine Manufacturers Association standards can be installed
Waterproof type (uses O-ring and gasket)
Flat type with 4mm projection from panel mounting surface
Key can be removed only when locked, so you will never forget to lock it
Standard lock uses a special thin cylinder (C-288-G)
Left and right compatible type (left and right can be switched by flipping the cam)
Specification
Material: Zinc alloy (ZDC)
Surface finish: Chrome plating (MZCr)
Key number: 00288Z
We also manufacture identical keys, key differences, and designated numbers.
Maximum number of key differences: 177,000
Applicable plate thickness: 1.0 to 3.2 mm
Accessories: 2 keys, mounting plate, special stopper, screw set
Applications
Vending machines, environmental equipment, control panels
