Manufacturer: TAKIGEN MFG.CO.,LTD.

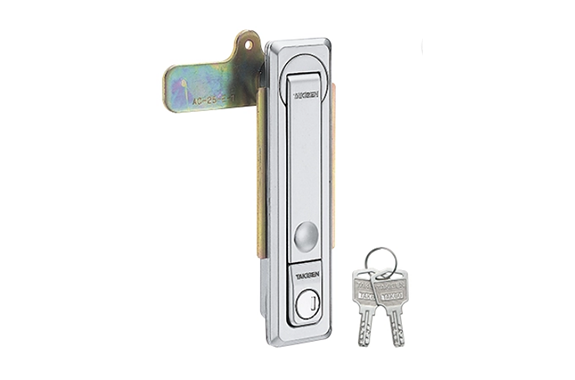

Model: A-494-12-TAK60

The lock features the new reversible TAK60 key, which comes with a dustproof shutter to ensure excellent operability. When you turn the key, it actively pushes the handle upward by 6 mm, which makes the handle pop out firmly and securely. In addition, it is fully compatible with the A-494-2 model for easy panel drilling. To enhance durability, the lock adopts a waterproof design that uses both an O-ring and sheet packing. Moreover, it uses satellite chrome plating to significantly improve rust resistance. You can also install it on either the left or right side, making it highly versatile for different setups.

Specification

Material: Zinc alloy (ZDC)
Finish: Satellite chrome plating (MZCr)
Key number: TAK60
Accessories: 2 keys, screw set, stopper plate, mounting plate

Applications

Cubicles, distribution boards, control panels

Remarks

By changing the mounting screws to M4 x 12SW, it can be used with plate thicknesses up to 4 mm.
We recommend applying a “loosening prevention agent” to the stopper plate mounting screws of this product to prevent them from loosening.

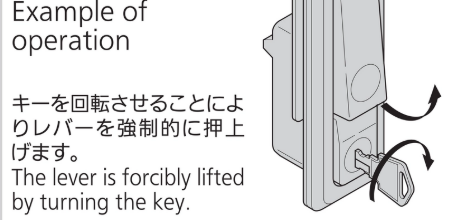

Example of operation
