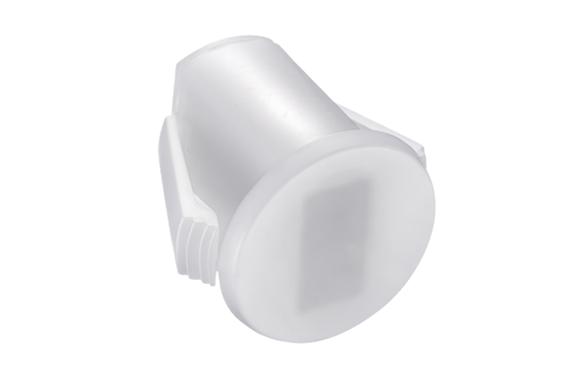

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: C-925

Features

Uses FDA (U.S. Food and Drug Administration) approved grade polyacetal.
Sealed resin structure prevents damage to the housing and generates no metal powder.

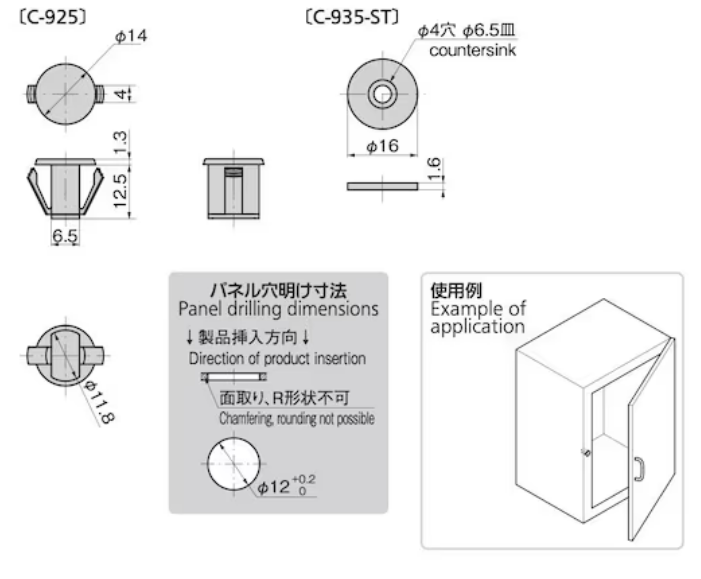

1.3mm thick with minimal surface protrusions.
Compatible with plate thicknesses of 0.8, 1.2, and 1.6mm.
Same drilling dimensions as C-935.

Specification

●Material: Magnet/Neodymium

case/Polyacetal (POM)

Receiving plate/Cold-rolled steel plate (SPCC)

●Surface finish: Receiving plate/Zinc-plated chromate treatment (MFZn-C)

●Adsorption force: 7N or more

Purpose

Cabinets, food processing equipment, semiconductor manufacturing equipment
